NSN 5935-00-056-9628
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-056-9628 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: CC55, 9986853, 5935-00-056-9628, 00-056-9628, 5935000569628, 000569628
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-056-9628 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

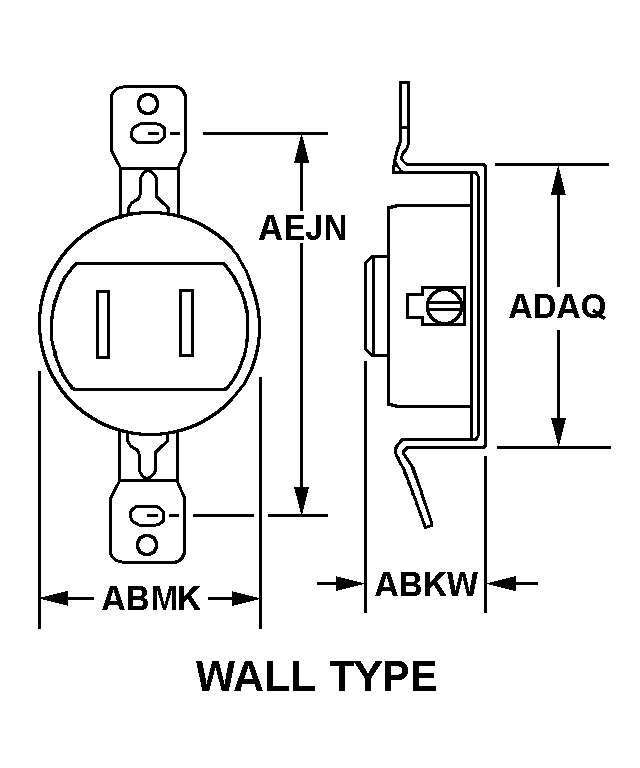

WALL TYPE
Cross Reference | NSN 5935-00-056-9628
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CC55 | 15235 | CROUSE-HINDS CO |
| 9986853 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-056-9628
| Characteristic | Specifications |
|---|---|
| BODY STYLE | WALL TYPE |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| BODY LENGTH | 1.468 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.297 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | BRACKET |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
