NSN 5935-00-056-3243
Part Details | ELECTRICAL CONNECTOR BRACKET
5935-00-056-3243 A bracket designed to be attached to a supporting surface for the specific purpose of positioning and sustaining an electrical connector(s). Excludes BRACKET, ANGLE. See also PLATE, RETAINING, ELECTRICAL CONNECTOR.
Alternate Parts: 1067224, 1067224, 5935-00-056-3243, 00-056-3243, 5935000563243, 000563243
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 27, 1967 | 00-056-3243 | 60134 ( BRACKET, ELECTRICAL CONNECTOR ) |

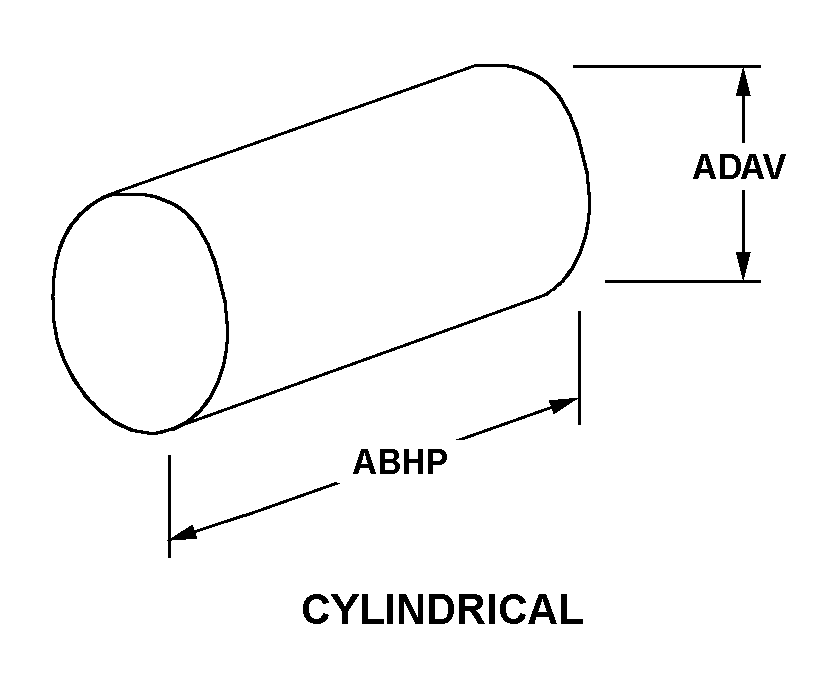

REFERENCE DRAWINGS & PICTURES
CYLINDRICAL
Cross Reference | NSN 5935-00-056-3243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1067224 | 77068 | ALLIED-SIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 1067224 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5935-00-056-3243
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL |
| OVERALL LENGTH | 1.660 INCHES NOMINAL |
| OVERALL DIAMETER | 4.620 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.181 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
