NSN 5935-00-056-2475
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-056-2475 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 54A14775, 2036214001, 2036214001, 203-62-14-001, 370150B30, 3701-50B30, A7010014P1REV2, A7010014REV2PT1, A7010014P1REV2, A7010014REV2PT1, 479408, CP35118B1BC, CP35-1-18B1BC, 38991B, 9159439, 10051783, 5935-00-056-2475, 00-056-2475, 5935000562475, 000562475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-056-2475 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/METAL SADDLE
TWO MOUNTING HOLES/SLOTS, IN-LINE

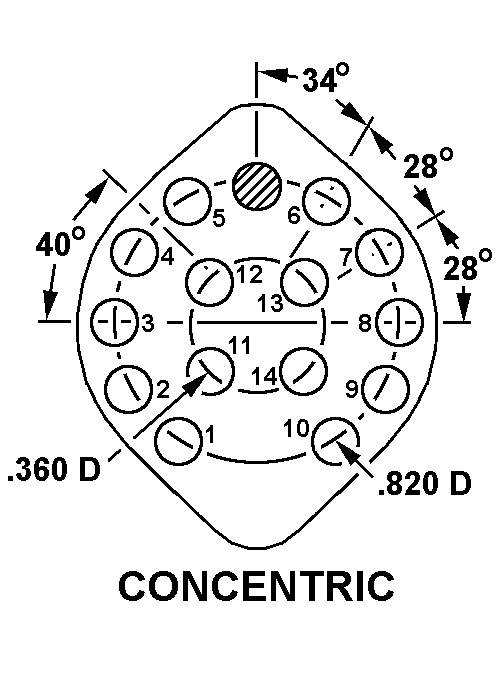

CONCENTRIC
Cross Reference | NSN 5935-00-056-2475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54A14775 | 71785 | CINCH CONNECTORS, INC. |
| 2036214001 | 71785 | CINCH CONNECTORS, INC. |
| 203-62-14-001 | 71785 | CINCH CONNECTORS, INC. |
| 3701-50B30 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| A7010014P1REV2 | 24446 | GENERAL ELECTRIC COMPANY |
| A7010014REV2PT1 | 24446 | GENERAL ELECTRIC COMPANY |
| A7010014P1REV2 | 78792 | GENERAL ELECTRIC COTRANSMITTER DIVISION |
| A7010014REV2PT1 | 78792 | GENERAL ELECTRIC COTRANSMITTER DIVISION |
| 479408 | 94580 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| CP35-1-18B1BC | 25500 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 38991B | 38151 | MARATHON ELECTRIC MANUFACTURINGCORPORATION |
| 9159439 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10051783 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-056-2475
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.328 INCHES MINIMUM AND 1.360 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.672 INCHES MINIMUM AND 0.704 INCHES MAXIMUM |
| OVERALL WIDTH | 0.921 INCHES MINIMUM AND 0.953 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.516 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.122 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.120 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| POLARIZATION TYPE | COLORED DOT |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| FABRICATION METHOD | MOLDED |
| SADDLE MATERIAL | BRASS |
| SADDLE SURFACE TREATMENT | CADMIUM |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
