NSN 5935-00-056-0983
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-056-0983 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 32750317, 32-75031-7, 0020100001, 002010-0001, CA42283, 5935-00-056-0983, 00-056-0983, 5935000560983, 000560983
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-056-0983 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

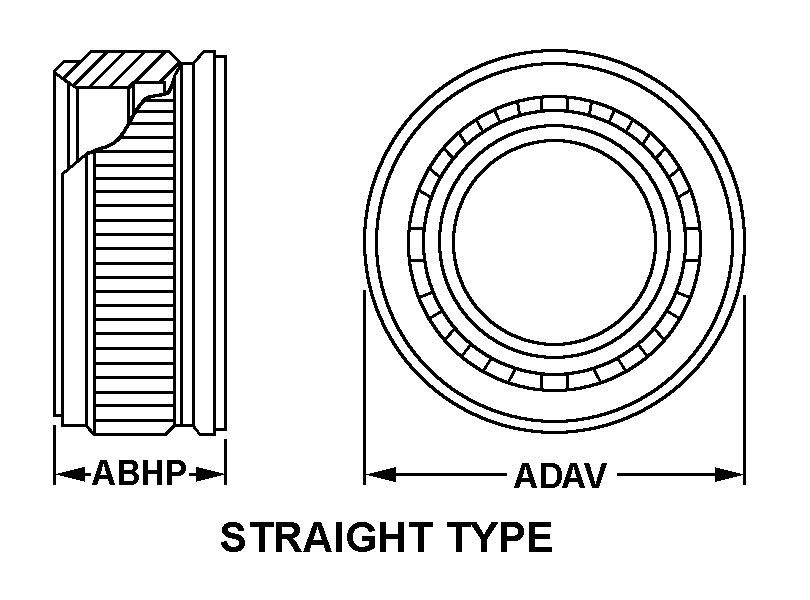

STRAIGHT TYPE
Cross Reference | NSN 5935-00-056-0983
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-75031-7 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 002010-0001 | 05574 | COOPER INTERCONNECT, INC. |
| CA42283 | 71468 | ITT CORPORATIONDBA I T T CANNON |
Technical Data | NSN 5935-00-056-0983
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT TYPE |
| OVERALL LENGTH | 1.175 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CHROMATE AND CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 1.875 INCHES NOMINAL |
