NSN 5935-00-055-5085
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-055-5085 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: WIS6290C12, WIS6290C1-2, WIS6290C12, WIS6290C1-2, 5935-00-055-5085, 00-055-5085, 5935000555085, 000555085
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-055-5085 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

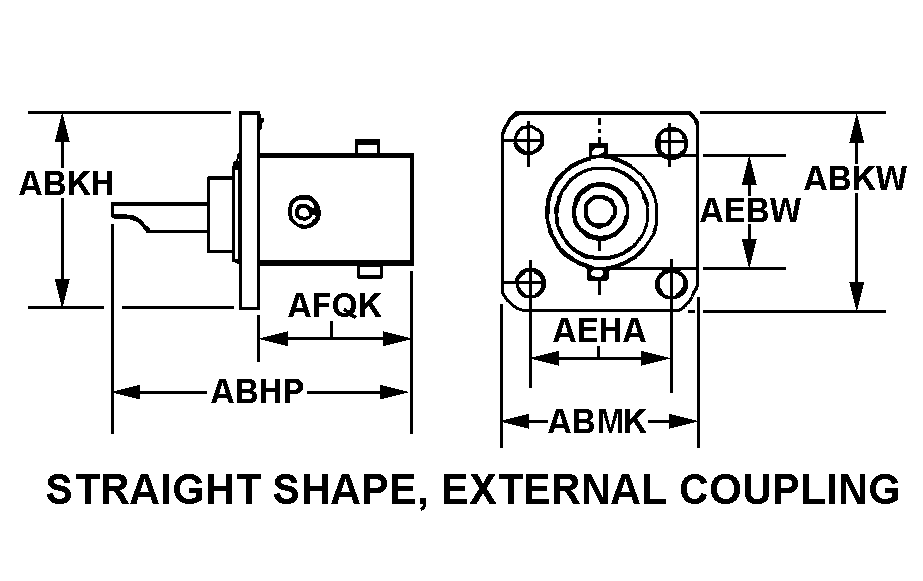

STRAIGHT SHAPE, EXTERNAL COUPLING
Cross Reference | NSN 5935-00-055-5085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WIS6290C1-2 | K2555 | G E C MARCONI COMMUNICATIONS LTD |
| WIS6290C1-2 | U2248 | LEONARDO MW LTD |
Technical Data | NSN 5935-00-055-5085
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 0.594 INCHES NOMINAL |
| OVERALL HEIGHT | 0.844 INCHES NOMINAL |
| OVERALL WIDTH | 0.844 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | ZINC AND CHROMATE |
| MATING END QUANTITY | 1 |
