NSN 5935-00-054-2487
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-054-2487 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 29991, 2999-1, 29991, 2999-1, 29991, 2999-1, 5935-00-054-2487, 00-054-2487, 5935000542487, 000542487
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-054-2487 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/STUDS
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

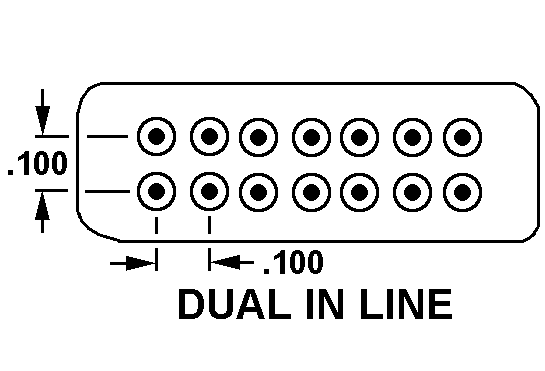

DUAL IN-LINE
Cross Reference | NSN 5935-00-054-2487
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2999-1 | 99928 | BRANSON CORP |
| 2999-1 | 58614 | TE CONNECTIVITY CORPORATIONDBA CII TECHNOLOGIES |
| 2999-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-054-2487
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.344 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.820 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.420 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.078 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY AND 0.014 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
