NSN 5935-00-054-1755
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-054-1755 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: DPJMB7733SD, DPJMB77-33SD, 3702421010, 370-2421-010, 5935-00-054-1755, 00-054-1755, 5935000541755, 000541755
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 15, 1967 | 00-054-1755 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

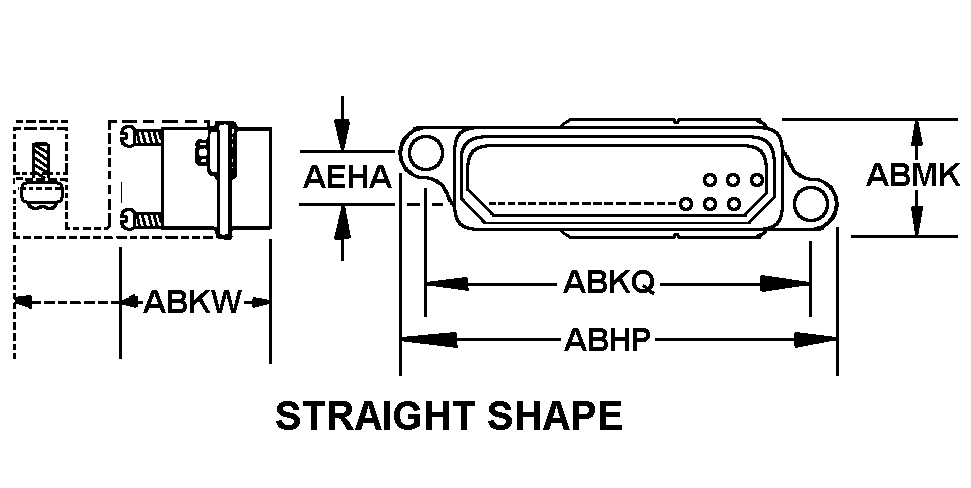

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-054-1755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DPJMB77-33SD | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 370-2421-010 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5935-00-054-1755
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 4.188 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.870 INCHES MINIMUM AND 3.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.250 INCHES MAXIMUM |
| OVERALL WIDTH | 1.146 INCHES MINIMUM AND 1.166 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.537 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| SHELL MATERIAL | ALUMINUM ALLOY |
| MATING END QUANTITY | 1 |
