NSN 5935-00-054-1733
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-054-1733 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 23729, 215011961, 215-01196-1, 5935-00-054-1733, 00-054-1733, 5935000541733, 000541733
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 15, 1967 | 00-054-1733 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

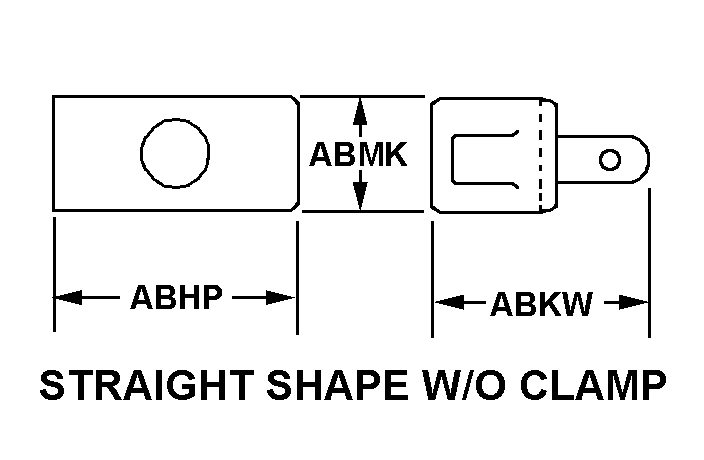

STRAIGHT SHAPE W/O CLAMP
Cross Reference | NSN 5935-00-054-1733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23729 | 99195 | THERMO ELECTRIC COMPANY INC.DBA THERMO ELECTRIC TEMPERATURE |
| 215-01196-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 5935-00-054-1733
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/O CLAMP |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL WIDTH | 0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
