NSN 5935-00-052-8806
Part Details | TIP PLUG
5935-00-052-8806 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Alternate Parts: 404YELL0W, 212YELL0W, 212107, 212-107, 212YELL0W, 5935-00-052-8806, 00-052-8806, 5935000528806, 000528806
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-052-8806 | 15046 ( PLUG, TIP ) |
REFERENCE DRAWINGS & PICTURES

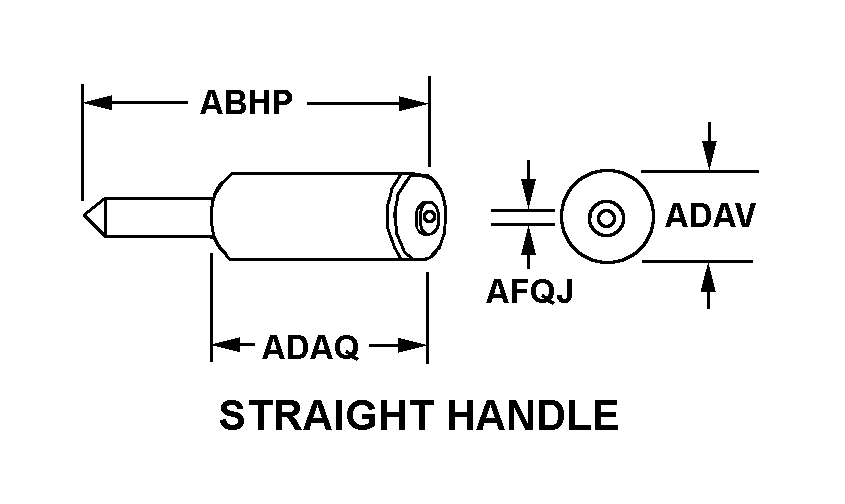

STRAIGHT HANDLE
Cross Reference | NSN 5935-00-052-8806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 404YELL0W | 71002 | BIRNBACH CO INC |
| 212YELL0W | 83330 | DIALIGHT CORPORATION |
| 212-107 | 91967 | HALSIT HOLDINGS, LLCDBA ABBATRON |
| 212YELL0W | 91967 | HALSIT HOLDINGS, LLCDBA ABBATRON |
Technical Data | NSN 5935-00-052-8806
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT HANDLE |
| OVERALL LENGTH | 1.812 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.188 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| IDENTIFICATION CODE COLOR | YELLOW |
| TERMINAL TYPE | THREADED STUD SOLDER CUP |
| CURRENT RATING IN AMPS | 15.0 |
