NSN 5935-00-052-3758
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-052-3758 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 0072006125, 450610, 12510392, 1251-0392, DB512121, DB51212-1, DB512121, DB51212-1, DB51212, DB51212, DB512121, DB51212-1, 0N4492251, 0N449225-1, 1142600003, 114-260-0003, 5334943, 533494-3, 1854142, 185414-2, 371029000, 371-0290-00, 3710290000, 371-0290-000, 0704657, FM0704657, C334Z17C63, C334-Z17-C63, 012510392, 01251-0392, SE50000898, SE50000-898, 10398375003, 10398375-003, 5935-00-052-3758, 00-052-3758, 5935000523758, 000523758
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-052-3758 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

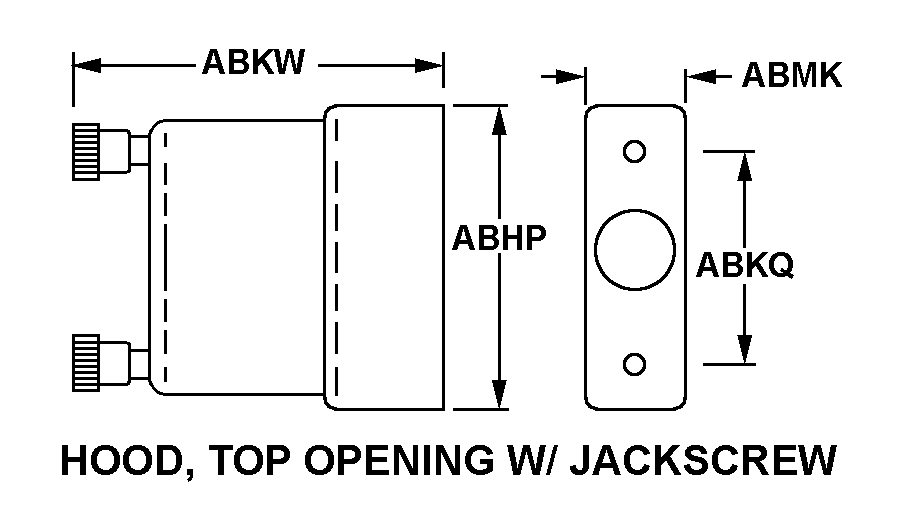

HOOD, TOP OPENING W/JACKSCREW
Cross Reference | NSN 5935-00-052-3758
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0072006125 | D1988 | ASCOM DEUTSCHLAND GMBH |
| 450610 | 21793 | ASTRONICS TEST SYSTEMS INC. |
| 1251-0392 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| DB51212-1 | D1371 | ITT CANNON GMBH |
| DB51212-1 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| DB51212 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| DB51212 | K0316 | ITT INDUSTRIES LIMITED ITT CANNONUK |
| DB51212-1 | K0316 | ITT INDUSTRIES LIMITED ITT CANNONUK |
| 0N449225-1 | 98230 | NATIONAL SECURITY AGENCY |
| 114-260-0003 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 533494-3 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 185414-2 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| 371-0290-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 371-0290-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| 0704657 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| FM0704657 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| C334-Z17-C63 | S3120 | SIEMENS SCHWEIZ AGDBA SIEMENS SWITZERLAND LTD. |
| 01251-0392 | 12848 | SOLRAC II INC |
| SE50000-898 | K0216 | THALES OPTRONICS LIMITED |
| 10398375-003 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-052-3758
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD, TOP OPENING W/JACKSCREW |
| OVERALL LENGTH | 2.078 INCHES MINIMUM AND 2.108 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.235 INCHES MINIMUM AND 1.265 INCHES MAXIMUM |
| OVERALL WIDTH | 0.547 INCHES MINIMUM AND 0.577 INCHES MAXIMUM |
| MATERIAL | PLASTIC POLYAMIDE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.694 INCHES NOMINAL |
| SIZE DESIGNATION | D |
