Part Details | ELECTRICAL CONNECTOR JACKSCREW
5935-00-052-3690 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Alternate Parts: 4501828, 10062727102, 10062727-102, 2008701, 200870-1, 11067406, 5935-00-052-3690, 00-052-3690, 5935000523690, 000523690
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-052-3690 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |

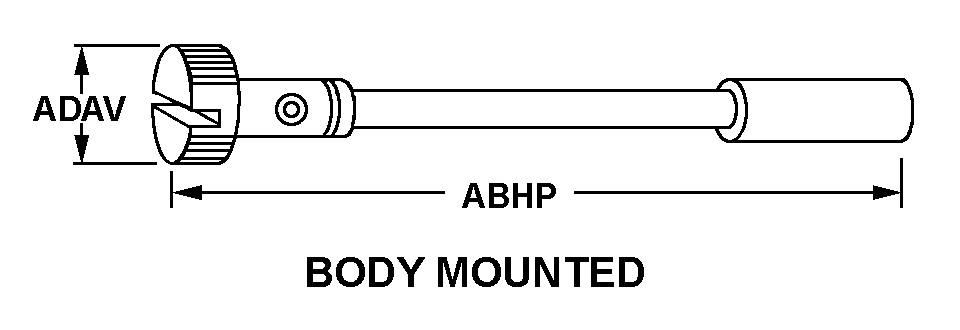

REFERENCE DRAWINGS & PICTURES
BODY MOUNTED
Cross Reference | NSN 5935-00-052-3690
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4501828 | 13799 | H & E VENTURE, LLC |
| 10062727-102 | 94580 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 200870-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 11067406 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-052-3690
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BODY MOUNTED |
| OVERALL LENGTH | 1.670 INCHES NOMINAL |
| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BODY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
