NSN 5935-00-051-2292
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-051-2292 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: MS160141, MS16014-1, 122227200, 122-227-200, 5935-00-051-2292, 00-051-2292, 5935000512292, 000512292
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-051-2292 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

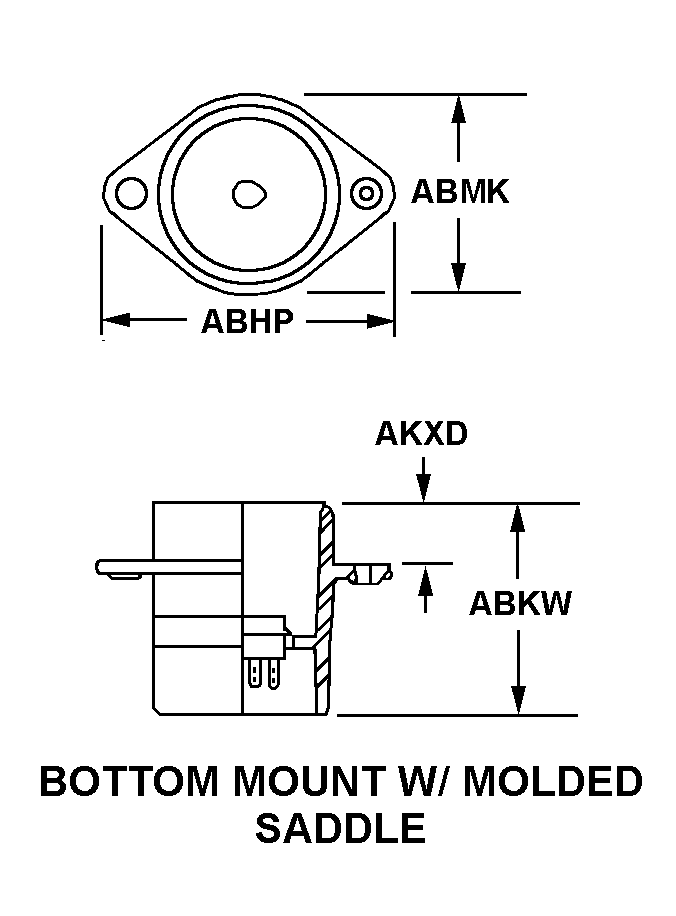

BOTTOM MOUNT W/MOLDED SADDLE

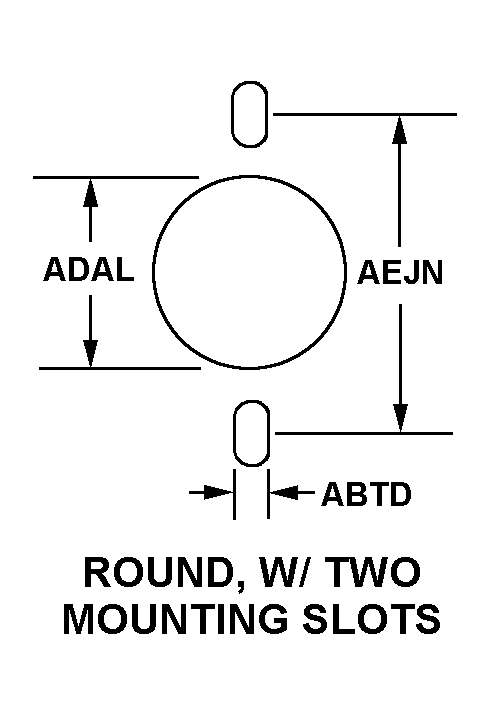

ROUND, W/TWO MOUNTING SLOTS

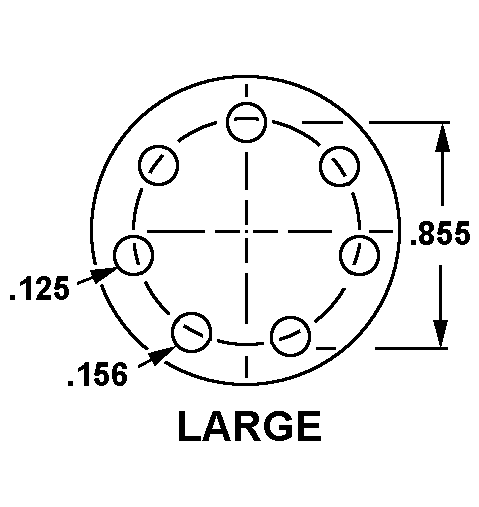

LARGE
Cross Reference | NSN 5935-00-051-2292
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16014-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 122-227-200 | 71313 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5935-00-051-2292
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | LARGE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | BOTTOM MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.265 INCHES MINIMUM AND 2.359 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.500 INCHES MINIMUM AND 0.624 INCHES MAXIMUM |
| OVERALL WIDTH | 1.654 INCHES MINIMUM AND 1.720 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING SLOTS |
| MOUNTING SLOT WIDTH | 0.158 INCHES MINIMUM AND 0.182 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.176 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.640 INCHES MINIMUM AND 1.720 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT SIZE |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
