NSN 5935-00-050-9889
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-050-9889 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: CA21204, CA2120-4, DS1007041, DS100704-1, SS710814A, SS7108-14A, 5935-00-050-9889, 00-050-9889, 5935000509889, 000509889
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-050-9889 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

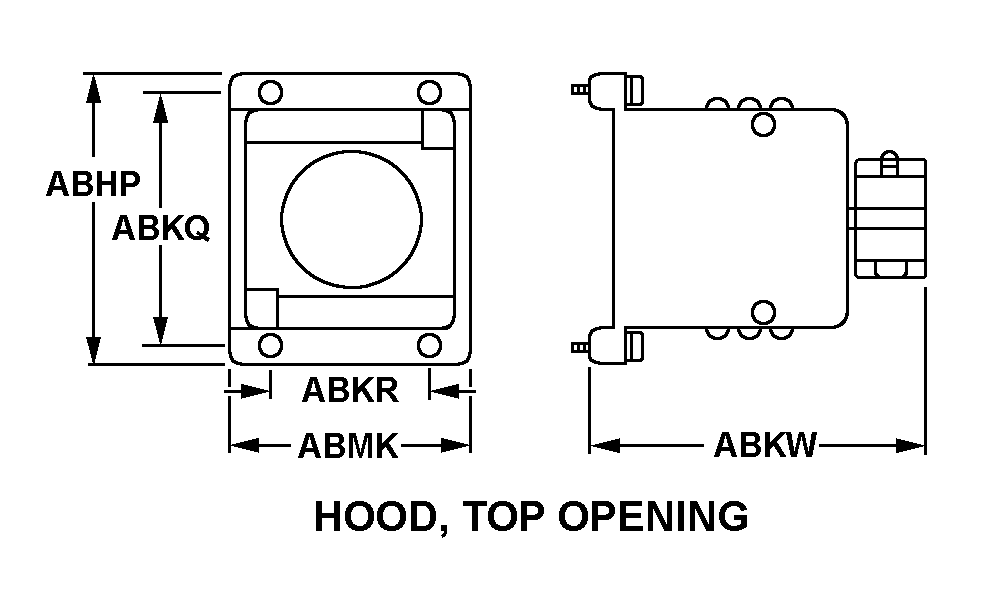

HOOD, TOP OPENING
Cross Reference | NSN 5935-00-050-9889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA2120-4 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| DS100704-1 | 08241 | LOCKHEED MARTIN CORPLOCKHEED MARTIN MISSION SYSTEMS |
| SS7108-14A | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 5935-00-050-9889
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD, TOP OPENING |
| OVERALL LENGTH | 1.198 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.906 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.906 INCHES NOMINAL |
| OVERALL HEIGHT | 0.802 INCHES MAXIMUM |
| OVERALL WIDTH | 1.198 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE AND 1 THREADED COUPLING |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.375 INCHES |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.567 INCHES MAXIMUM |
| SIZE DESIGNATION | 14 |
