Part Details | ELECTRICAL PLUG CONNECTOR

5935-00-050-4311 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: PT06W168S, PT06W16-8S, 1876826PC240, 1004252240, 1004252-240, 178266740, 1782667-40, 1876826PC240, 5935-00-050-4311, 00-050-4311, 5935000504311, 000504311

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196100-050-431101938 ( CONNECTOR, PLUG, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

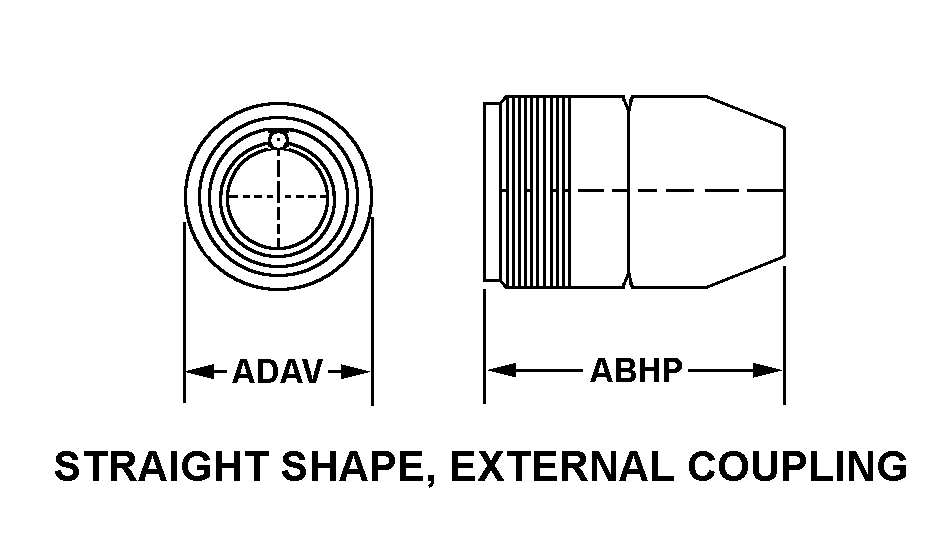

STRAIGHT SHAPE, EXTERNAL COUPLING

CONNECTOR,PLUG,ELEC | 5935-00-050-4311, 000504311
Cross Reference | NSN 5935-00-050-4311
Part Number Cage Code Manufacturer
PT06W16-8S77820AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS
1876826PC24077820AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS
1004252-24056232LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
1782667-4056232LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
1876826PC24010001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
Technical Data | NSN 5935-00-050-4311
Characteristic Specifications
BODY STYLE STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH1.705 INCHES NOMINAL
OVERALL DIAMETER0.750 INCHES NOMINAL
CONNECTOR LOCKING METHOD BAYONET LATCH
SHELL TYPE SOLID
SHELL MATERIAL ALUMINUM ALLOY
SHELL SURFACE TREATMENT CADMIUM AND CHROMATE
POLARIZATION METHOD KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG0.0
MATING END QUANTITY1
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACE GOLD
