NSN 5935-00-050-1850
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-050-1850 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: S010154463, S0-1015-4463, 5935-00-050-1850, 00-050-1850, 5935000501850, 000501850
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 09, 1967 | 00-050-1850 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/MOLDED SADDLE

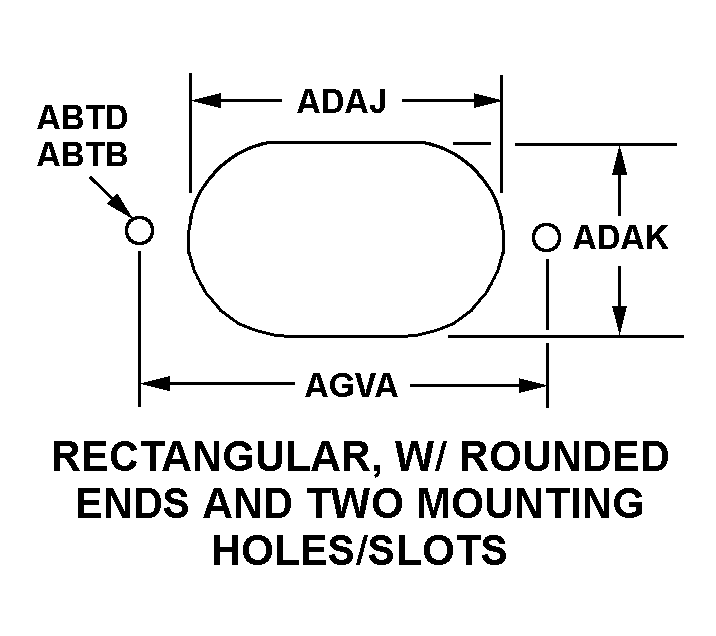

RECTANGULAR, W/ROUNDED ENDS AND TWO MOUN TING HOLES/SLOTS

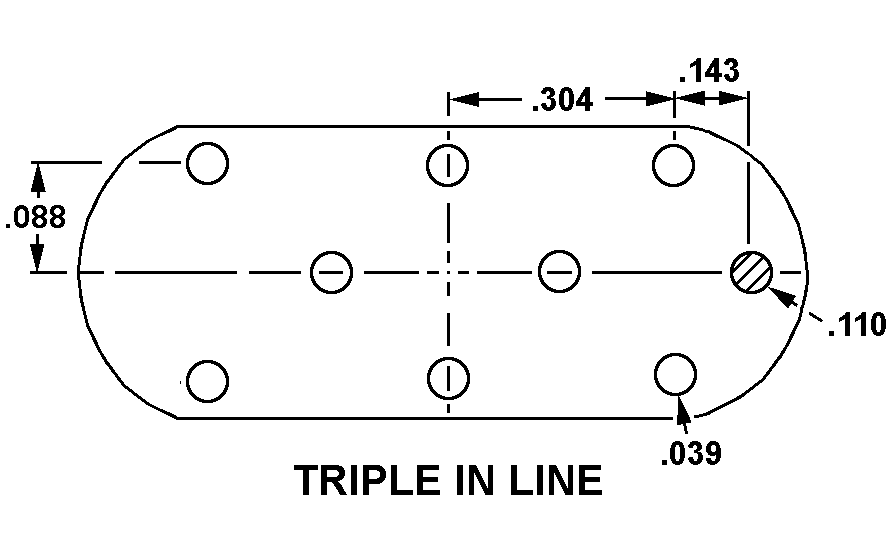

TRIPLE IN LINE
Cross Reference | NSN 5935-00-050-1850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S0-1015-4463 | 58657 | LEACH INTERNATIONAL CORPORATIONDBA ESTERLINE POWER SYSTEMS |
Technical Data | NSN 5935-00-050-1850
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | TRIPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.218 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.578 INCHES NOMINAL |
| OVERALL WIDTH | 0.631 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.093 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 8 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/ROUNDED ENDS AND TWO MOUN TING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.231 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.562 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.844 INCHES NOMINAL |
| POLARIZATION TYPE | OFF CENTER HOLE |
| FURNISHED ITEMS AND QUANTITY | 2 SCREW AND 2 FLAT WASHER AND 2 STUD AND 2 NUT |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| TEMP RATING | -65.0 DEG CELSIUS AND 120.0 DEG CELSIUS |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
