NSN 5935-00-050-1415
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-050-1415 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 59134, 59-134, 59134, 59-134, 27E007, 9KH2, 2201582010, 220-1582-010, 9002190, 04900402, 0490-0402, 6700011, 670-0011, 9C04204C02, 94204C02, 9-4204C02, 211009001, 211009-001, 16023, 16-023, 27E007, 20517490704, 2051749-0704, 1003420036, 800577, 9KH2, 27E007, 5935-00-050-1415, 00-050-1415, 5935000501415, 000501415
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 09, 1967 | 00-050-1415 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

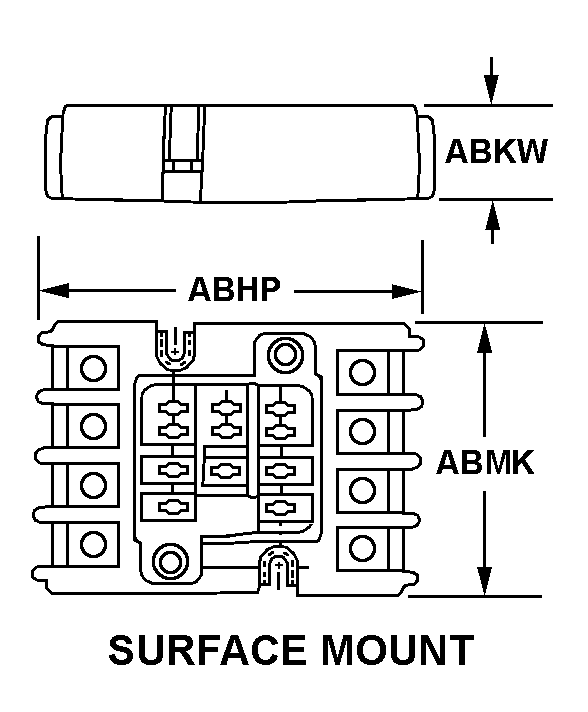

SURFACE MOUNT
RECTANGULAR
SYMMETRICAL
Cross Reference | NSN 5935-00-050-1415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 59-134 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 59-134 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 27E007 | 96152 | BORG-WARNER CORPMARVEL-SCHEBLER/TILLOTSON DIV |
| 9KH2 | K0577 | BRITISH SAROZAL LTD |
| 220-1582-010 | 52151 | CONTINENTAL ELECTRONICS CORPORATION |
| 9002190 | 13799 | H & E VENTURE, LLC |
| 0490-0402 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 670-0011 | 04221 | MIDLAND-ROSS CORPMIDTEX DIV |
| 9C04204C02 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 9-4204C02 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 211009-001 | 25512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA DENRO SYSTEMS |
| 16-023 | 00816 | PALOMAR PRODUCTS, INC. |
| 27E007 | 12300 | POTTER AND BRUMFIELD DIV AMF CANADALTD |
| 2051749-0704 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
| 1003420036 | 12338 | RIIMIC, LLCDBA SUNAIR ELECTRONICS |
| 800577 | 33642 | SYQWEST, INC. |
| 9KH2 | 77342 | TE CONNECTIVITY CORPORATION |
| 27E007 | 77342 | TE CONNECTIVITY CORPORATION |
Technical Data | NSN 5935-00-050-1415
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | SURFACE MOUNT |
| OVERALL LENGTH | 1.156 INCHES NOMINAL |
| OVERALL HEIGHT | 0.442 INCHES NOMINAL |
| OVERALL WIDTH | 0.843 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | RECTANGULAR |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.312 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.875 INCHES NOMINAL |
