NSN 5935-00-050-1322
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-050-1322 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: HRTS617J, 73723003, 737230-03, 5935-00-050-1322, 00-050-1322, 5935000501322, 000501322
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 09, 1967 | 00-050-1322 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/STUDS

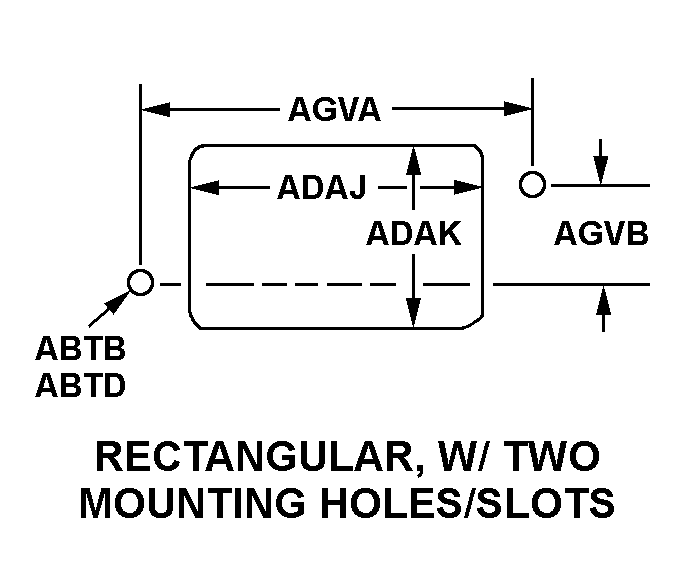

RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS
DUAL IN LINE
Cross Reference | NSN 5935-00-050-1322
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HRTS617J | 91663 | ARMEL ELECTRONICS INC |
| 737230-03 | 35351 | GE AVIATION SYSTEMS LLC |
Technical Data | NSN 5935-00-050-1322
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.266 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.625 INCHES MAXIMUM |
| OVERALL WIDTH | 0.395 INCHES MAXIMUM |
| BODY MATERIAL | BRASS |
| TERMINAL TYPE AND QUANTITY | 8 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.776 INCHES MINIMUM AND 0.786 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.401 INCHES MINIMUM AND 0.411 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
