NSN 5935-00-045-7596
Part Details | CONNECTOR ADAPTER
5935-00-045-7596 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Alternate Parts: 1160066P2, 5935-00-045-7596, 00-045-7596, 5935000457596, 000457596
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-045-7596 | 15091 ( ADAPTER, CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

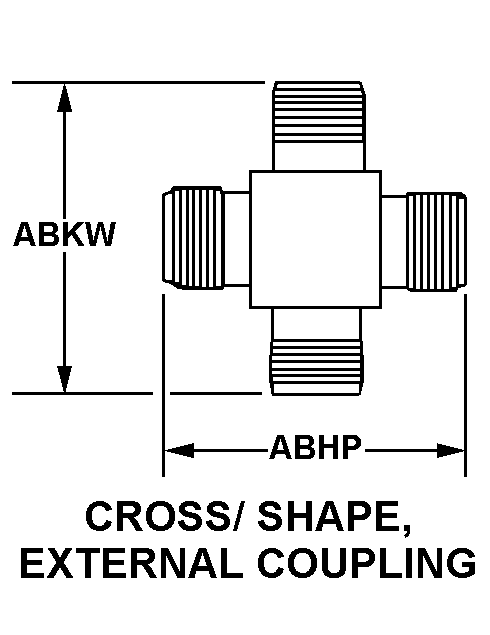

CROSS/SHAPE, EXTERNAL COUPLING
Cross Reference | NSN 5935-00-045-7596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1160066P2 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5935-00-045-7596
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A CROSS/SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.391 INCHES NOMINAL |
| OVERALL DIAMETER | 0.578 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH AND BAYONET LATCH |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| MATING END QUANTITY | 2 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
