NSN 5935-00-045-7586
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-045-7586 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 1163112P1, 20686640701, 2068664-0701, M12SH, M12SM12H, M12S-M12H, M12SM12HC, 5935-00-045-7586, 00-045-7586, 5935000457586, 000457586
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-045-7586 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

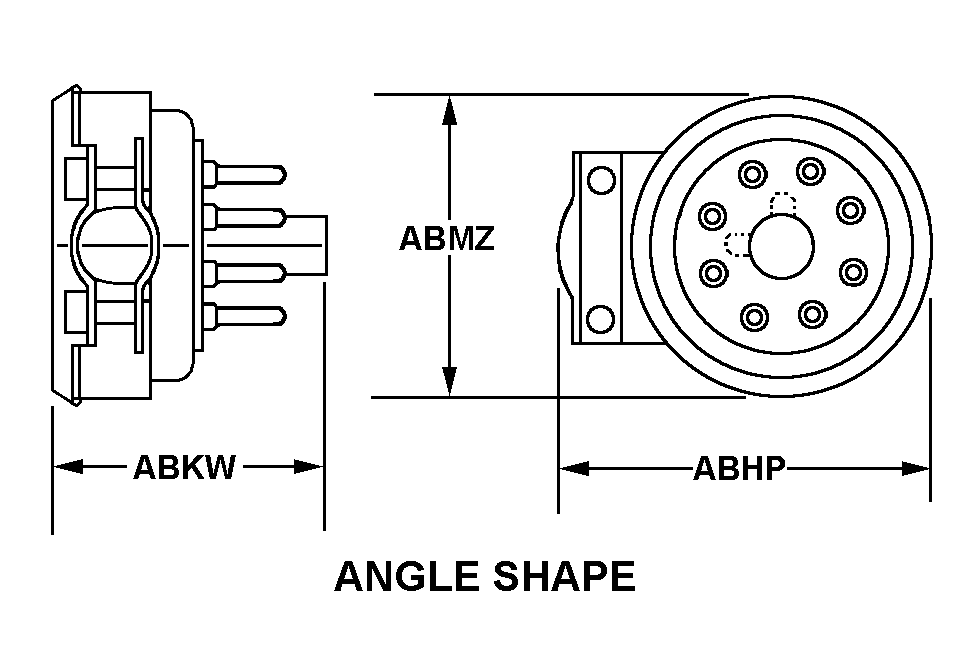

ANGLE SHAPE
Cross Reference | NSN 5935-00-045-7586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1163112P1 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 2068664-0701 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| M12SH | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
| M12S-M12H | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
| M12SM12HC | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5935-00-045-7586
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| DIAMETER | 1.125 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE OPENING LENGTH | 0.438 INCHES NOMINAL |
| CABLE OPENING WIDTH | 0.312 INCHES NOMINAL |
| SHELL TYPE | HOOD, SIDE OPENING |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| OPERATING TEMP RATING | -40.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.012 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
