NSN 5935-00-045-1076
Part Details | ELECTRICAL CONNECTOR GUIDE
5935-00-045-1076 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 6083831, 5935-00-045-1076, 00-045-1076, 5935000451076, 000451076
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 17, 1968 | 00-045-1076 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |

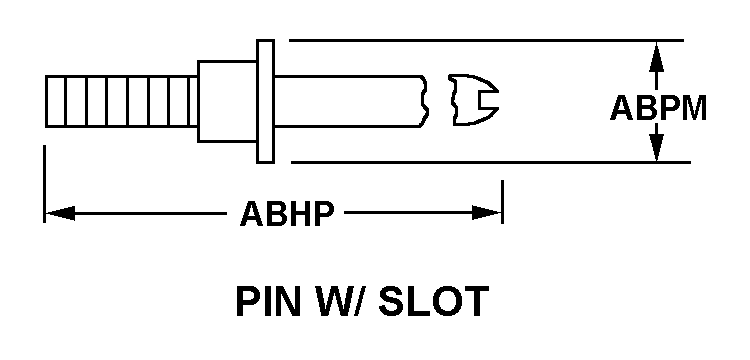

REFERENCE DRAWINGS & PICTURES
PIN W/SLOT
Cross Reference | NSN 5935-00-045-1076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6083831 | 03640 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5935-00-045-1076
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN W/SLOT |
| OVERALL LENGTH | 0.638 INCHES NOMINAL |
| BODY DIAMETER | 0.155 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | OXIDE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.115 INCHES |
