NSN 5935-00-040-9147
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-040-9147 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 68A12A1426, 5935-00-040-9147, 00-040-9147, 5935000409147, 000409147
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 19, 1972 | 00-040-9147 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT

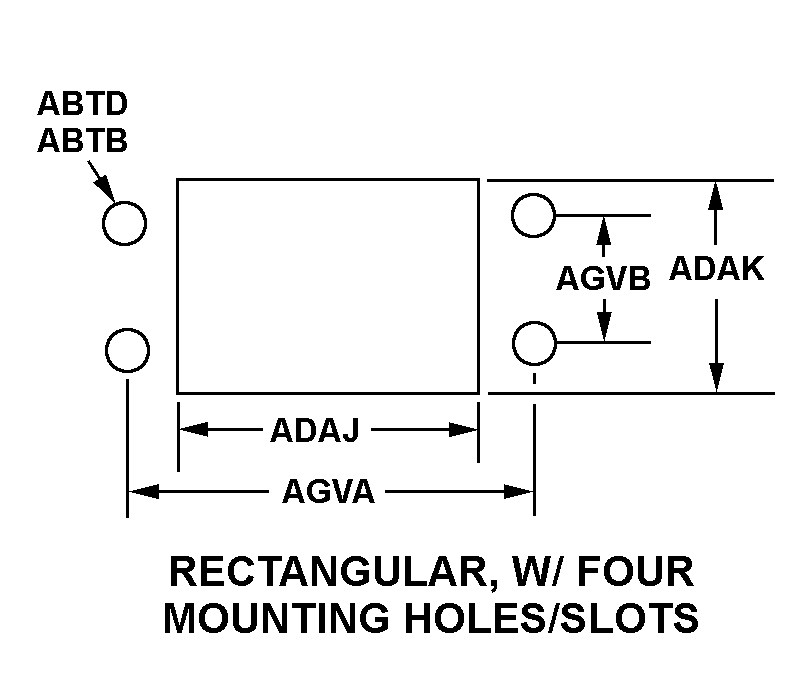

RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS

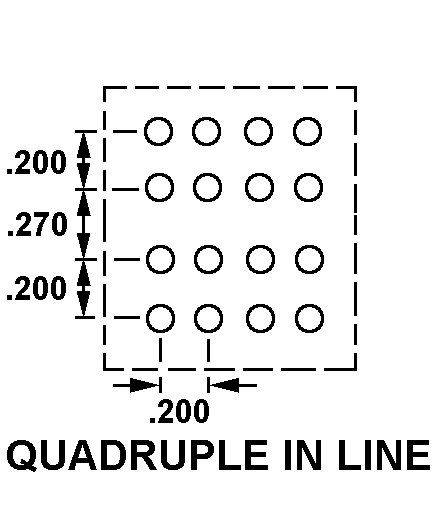

QUADRUPLE IN LINE
Cross Reference | NSN 5935-00-040-9147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68A12A1426 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
Technical Data | NSN 5935-00-040-9147
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | QUADRUPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.725 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.290 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 16 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.075 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.400 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.500 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIAL FEATURES | MOUNTING HOLES COUNTER BORED 0.250 IN. DIA.,0.120 IN. DEEP |
