NSN 5935-00-038-3880
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-038-3880 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 9072868, K33405, 89911451, 8991145-1, 89911451, 8991145-1, 9072868, 9072868, 5935-00-038-3880, 00-038-3880, 5935000383880, 000383880
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-038-3880 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

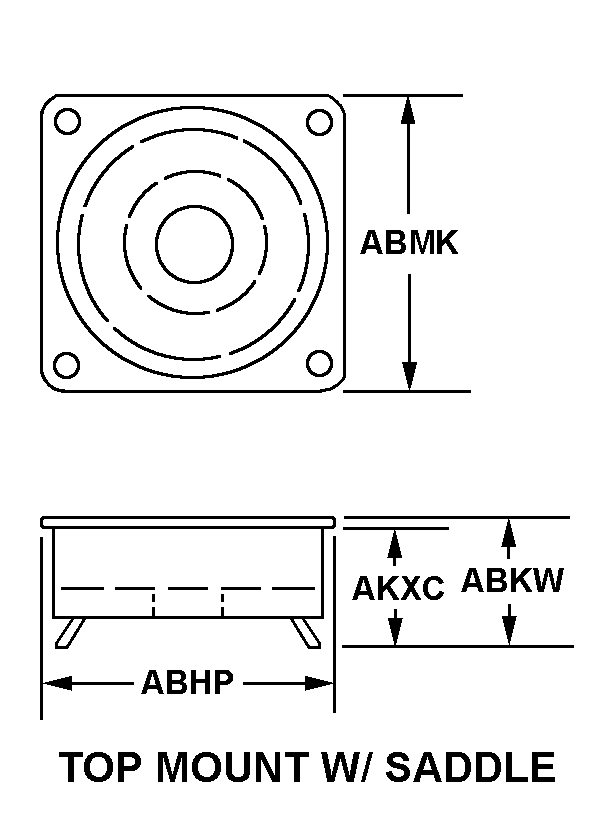

TOP MOUNT W/SADDLE
ROUND, W/FOUR MOUNTING HOLES/SLOTS

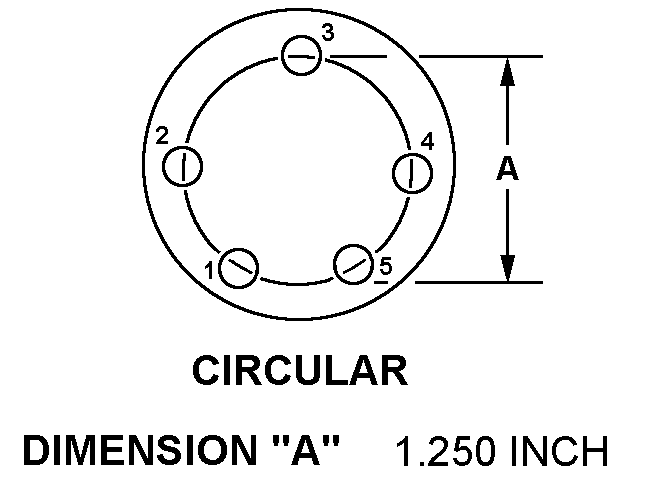

CIRCULAR
Cross Reference | NSN 5935-00-038-3880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9072868 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| K33405 | 57285 | BETA LABS INCA-B AND MILLEN MFG DIV |
| 8991145-1 | 02769 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 8991145-1 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 9072868 | 19203 | PICATINNY ARSENAL |
| 9072868 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-038-3880
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 5 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/SADDLE |
| OVERALL LENGTH | 3.484 INCHES MINIMUM AND 3.516 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.890 INCHES MINIMUM AND 0.922 INCHES MAXIMUM |
| OVERALL WIDTH | 3.484 INCHES MINIMUM AND 3.516 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.890 INCHES MINIMUM AND 0.922 INCHES MAXIMUM |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 5 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/FOUR MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 2.859 INCHES MINIMUM AND 2.891 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 2.859 INCHES MINIMUM AND 2.891 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.025 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
