NSN 5935-00-035-3733
Part Details | ELECTRICAL PLUG CONNECTOR BODY
5935-00-035-3733 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 4140701003, 414-0701-003, 200375210, 200-375-210, 5935-00-035-3733, 00-035-3733, 5935000353733, 000353733
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 03, 1972 | 00-035-3733 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

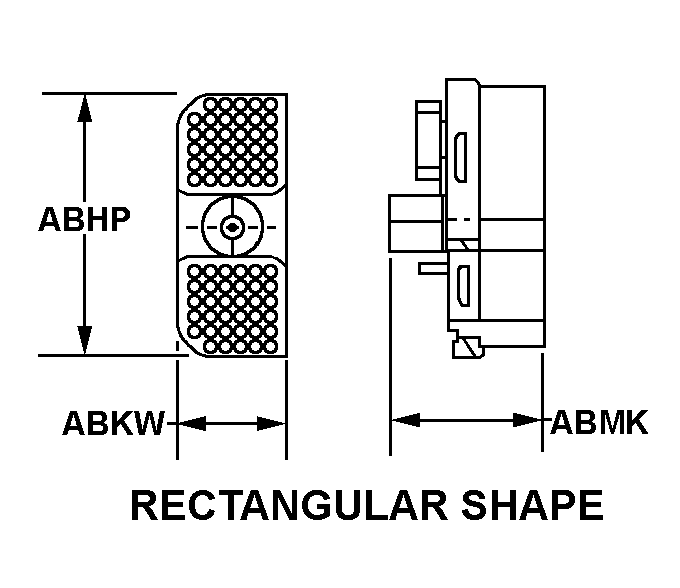

RECTANGULAR SHAPE
Cross Reference | NSN 5935-00-035-3733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 414-0701-003 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 200-375-210 | 06473 | BUNKER RAMO CORP AMPHENOL NORTHAMERICAN DIV SAMS OPERATION |
Technical Data | NSN 5935-00-035-3733
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| OVERALL LENGTH | 3.335 INCHES MINIMUM AND 3.366 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.485 INCHES MINIMUM AND 2.516 INCHES MAXIMUM |
| OVERALL WIDTH | 2.366 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | TIN |
| MATING END QUANTITY | 1 |
| END ITEM IDENTIFICATION | CABLE ASSEMBLY,SPECIAL PURPOSE-6150-01-065-3883/LGM-30F MISSILE |
