NSN 5935-00-034-3946
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-034-3946 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: C33678, C33678, SB2813, SB2813, C33678, 5935-00-034-3946, 00-034-3946, 5935000343946, 000343946
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-034-3946 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

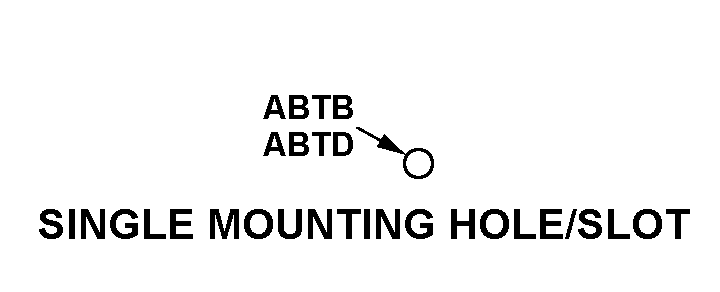

SINGLE MOUNTING HOLE/SLOT

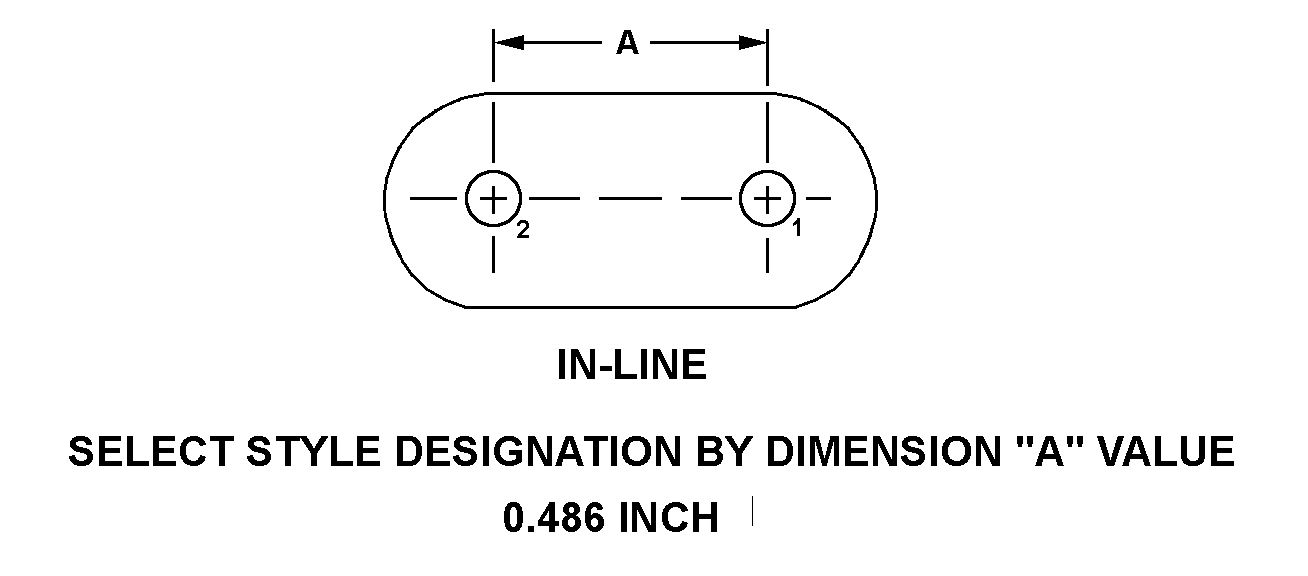

IN LINE
Cross Reference | NSN 5935-00-034-3946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C33678 | 07886 | DAR ELECTRONICS INCCOMMERCIAL PRODUCTS DIV |
| C33678 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| SB2813 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| SB2813 | 02734 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| C33678 | 92149 | STRUX CORP |
Technical Data | NSN 5935-00-034-3946
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| GROUND TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | SINGLE MOUNTING HOLE/SLOT |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SPECIFIC EQUIPMENT ACCOMMODATED | CRYSTAL |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
