NSN 5935-00-033-7895
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-033-7895 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 808021075, 8080-21075, 80801G4, 8080-1G4, 12641261, 1264-1261, 377313037, 377-313-037, 529689, C81412, C8141-2, 0N507736, 529689, 808021075, 8080-21075, 80801G3, 8080-1G3, 216017001, 216-01700-1, P8350200501, P83502-005-01, 10164250, 5935-00-033-7895, 00-033-7895, 5935000337895, 000337895
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 09, 1967 | 00-033-7895 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

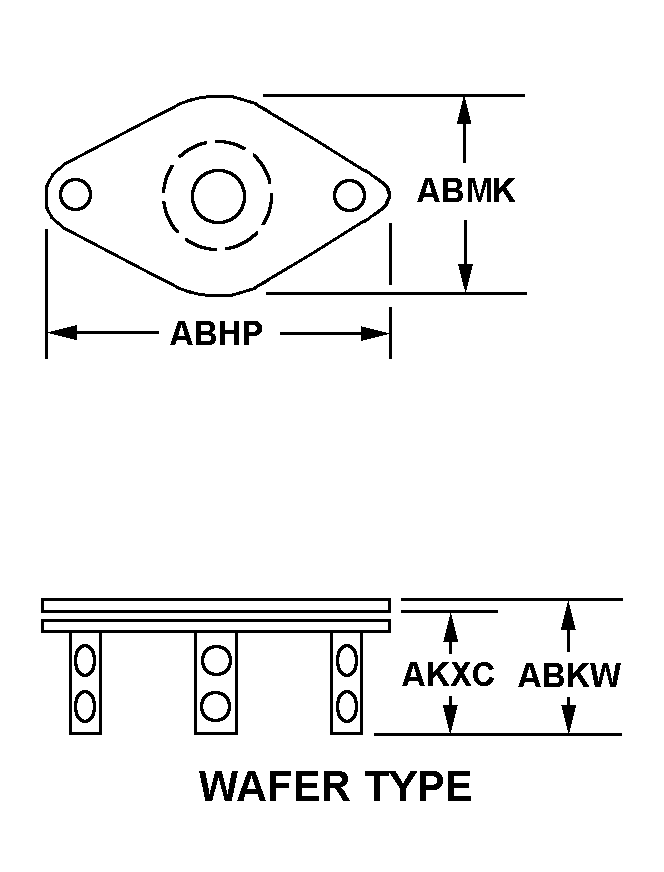

WAFER TYPE
TWO MOUNTING HOLES/SLOTS, IN-LINE
IN LINE
Cross Reference | NSN 5935-00-033-7895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8080-21075 | 91506 | AUGAT INC |
| 8080-1G4 | 91506 | AUGAT INC |
| 1264-1261 | 72314 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
| 377-313-037 | 07421 | INTERSTATE ELECTRONICS CORPORATIONDBA L-3 INTERSTATE ELECTRONICS |
| 529689 | 1PQF4 | L3 TECHNOLOGIES, INC.DBA LINK SIMULATION & TRAINING |
| C8141-2 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 0N507736 | 98230 | NATIONAL SECURITY AGENCY |
| 529689 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 8080-21075 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 8080-1G3 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 216-01700-1 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| P83502-005-01 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10164250 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-033-7895
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | WAFER TYPE |
| OVERALL LENGTH | 1.570 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.716 INCHES MAXIMUM |
| OVERALL WIDTH | 0.730 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.028 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| GROUND TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.187 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFIC EQUIPMENT ACCOMMODATED | SEMICONDUCTOR DEVICE |
| FABRICATION METHOD | MOLDED |
| SADDLE MATERIAL | BRASS |
| SADDLE SURFACE TREATMENT | ANY ACCEPTABLE |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.015 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
