NSN 5935-00-028-0990
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-028-0990 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: EPC050DA006, C65621, C6562-1, 5935-00-028-0990, 00-028-0990, 5935000280990, 000280990
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 26, 1972 | 00-028-0990 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

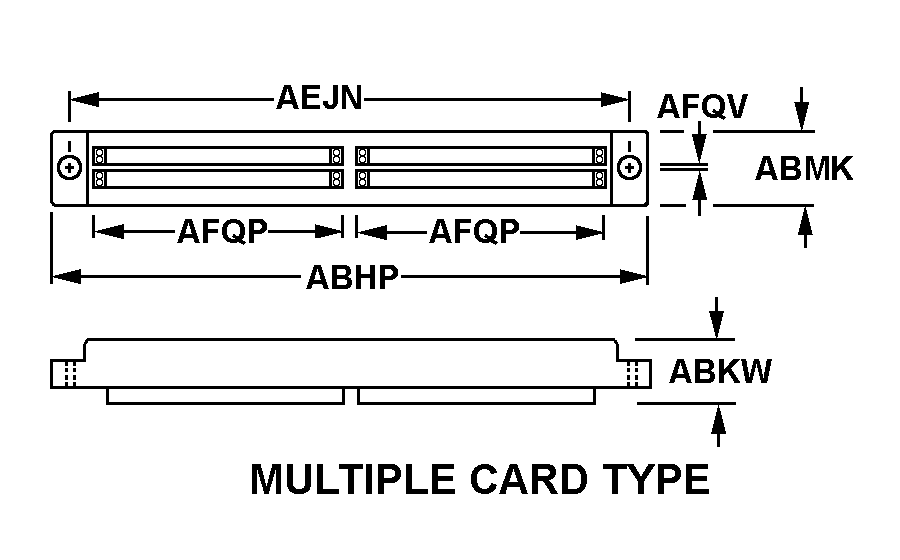

REFERENCE DRAWINGS & PICTURES
MULTIPLE CARD TYPE
Cross Reference | NSN 5935-00-028-0990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EPC050DA006 | 53669 | DELPHI CONNECTION SYSTEMS, LLCDIV DELPHI CONNECTION SYSTEMS |
| C6562-1 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5935-00-028-0990
| Characteristic | Specifications |
|---|---|
| BODY STYLE | MULTIPLE CARD TYPE |
| OVERALL LENGTH | 3.390 INCHES MINIMUM AND 4.010 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.450 INCHES NOMINAL |
| OVERALL WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.140 INCHES MINIMUM AND 3.160 INCHES MAXIMUM |
| BOARD ACCOMMODATED WIDTH | 0.054 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| MATING END QUANTITY | 2 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.100 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
