Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-027-4723 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 789, 5935-00-027-4723, 00-027-4723, 5935000274723, 000274723
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-027-4723 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

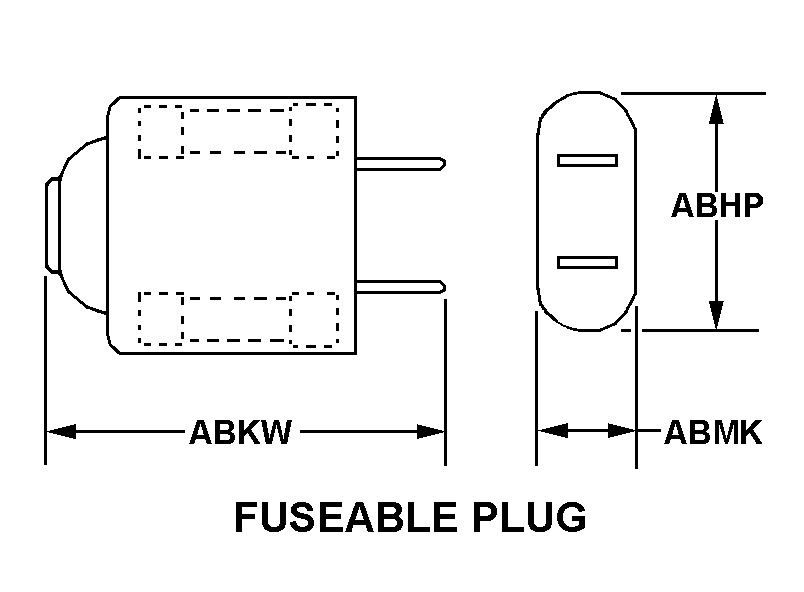

REFERENCE DRAWINGS & PICTURES
FUSEABLE PLUG
Cross Reference | NSN 5935-00-027-4723
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 789 | 72041 | COOPER WIRING DEVICES INC. |
Technical Data | NSN 5935-00-027-4723
| Characteristic | Specifications |
|---|---|
| BODY STYLE | FUSEABLE PLUG |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | INTEGRAL CLAMP |
| CABLE ENTRANCE DIAMETER | 0.312 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
