NSN 5935-00-027-1875
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-027-1875 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 78RS7CT, 78RS7CT, 1027986, 102798-6, 5935-00-027-1875, 00-027-1875, 5935000271875, 000271875
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-027-1875 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

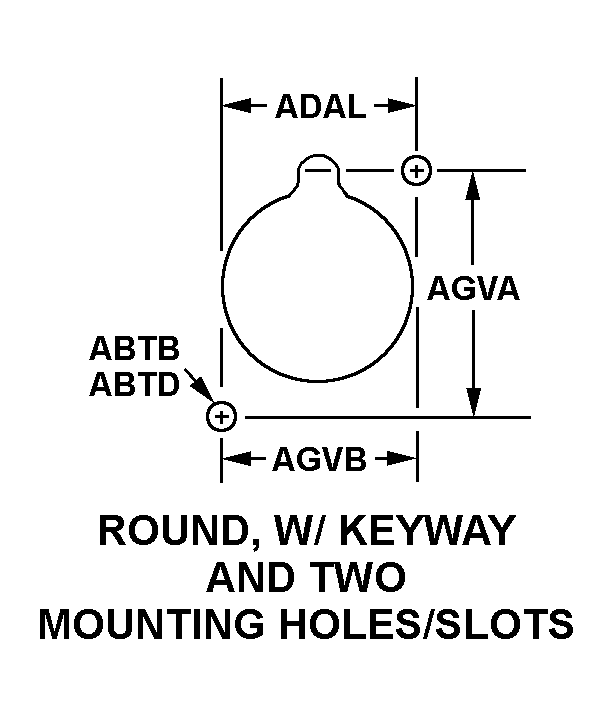

ROUND, W/KEYWAY AND TWO MOUNTING HOLES/SLOTS
LARGE
Cross Reference | NSN 5935-00-027-1875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78RS7CT | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 78RS7CT | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 102798-6 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
Technical Data | NSN 5935-00-027-1875
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | LARGE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MATERIAL | COPPER ALLOY |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/KEYWAY AND TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.328 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.688 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.688 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
