NSN 5935-00-027-1257
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-027-1257 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: SK410, SK-410, 5935-00-027-1257, 00-027-1257, 5935000271257, 000271257
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-027-1257 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

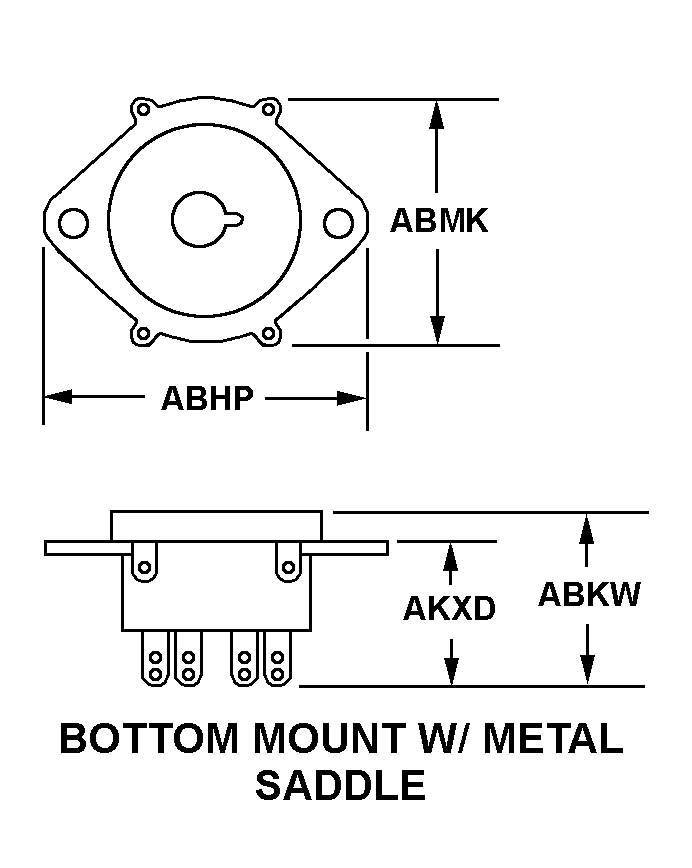

BOTTOM MOUNT W/METAL SADDLE

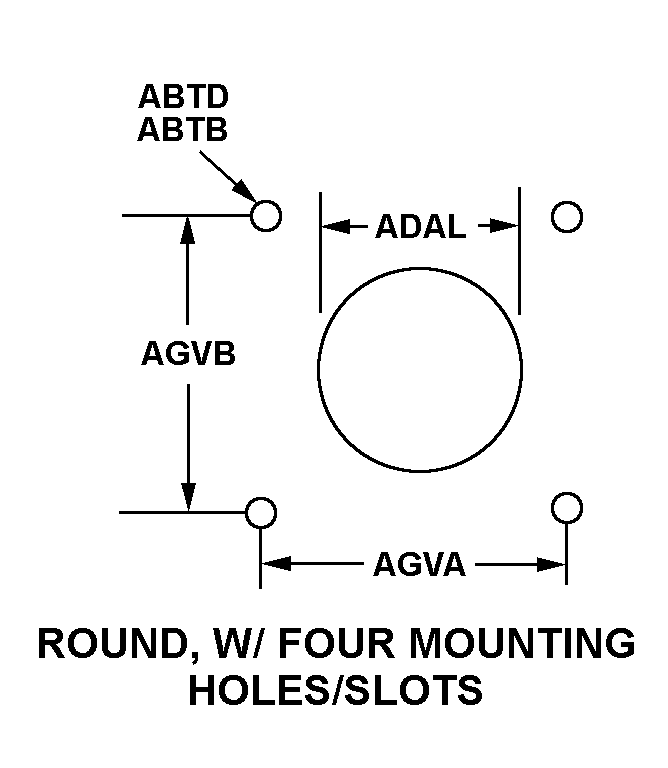

ROUND, W/FOUR MOUNTING HOLES/SLOTS
CIRCULAR
Cross Reference | NSN 5935-00-027-1257
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SK-410 | 06980 | COMMUNICATIONS & POWER INDUSTRIESLLC |
Technical Data | NSN 5935-00-027-1257
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 5 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 4.969 INCHES MINIMUM AND 5.031 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| OVERALL WIDTH | 4.594 INCHES MINIMUM AND 4.656 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 5 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | ROUND, W/FOUR MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.132 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 2.625 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.025 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
