NSN 5935-00-026-9359
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-026-9359 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 8013A1G5A, 8013A1G5A, 5935-00-026-9359, 00-026-9359, 5935000269359, 000269359
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 26, 1972 | 00-026-9359 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

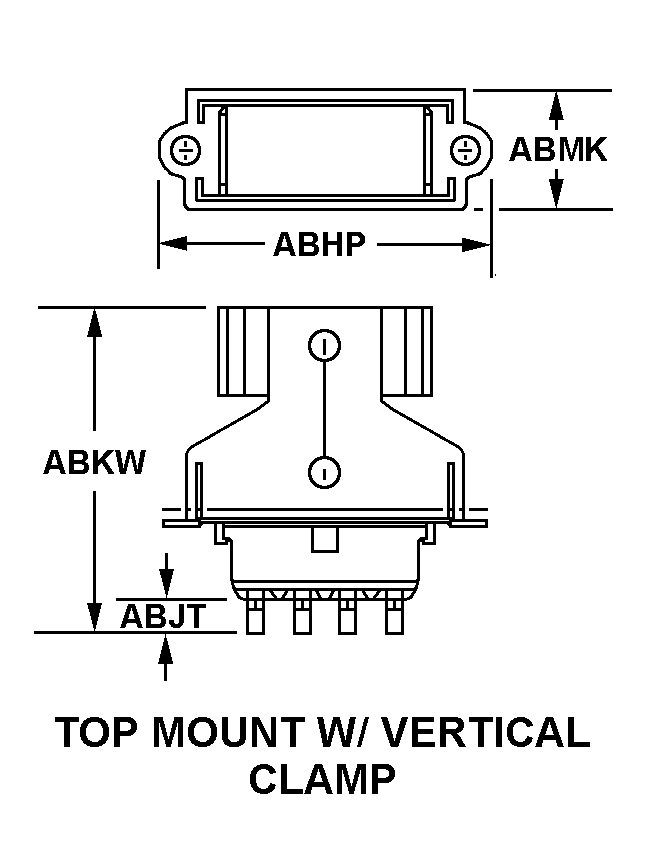

TOP MOUNT W/VERTICAL CLAMP
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS
DUAL IN LINE
Cross Reference | NSN 5935-00-026-9359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8013A1G5A | 91506 | AUGAT INC |
| 8013A1G5A | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-026-9359
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/VERTICAL CLAMP |
| OVERALL LENGTH | 1.266 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.188 INCHES NOMINAL |
| OVERALL HEIGHT | 1.266 INCHES MAXIMUM |
| OVERALL WIDTH | 0.365 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.790 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.365 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.000 INCHES NOMINAL |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
