NSN 5935-00-026-9338

Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-00-026-9338 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Alternate Parts: 9PCB4, 1215200106, 121-52-00-106, MPN16001, MPN1600-1, PM540, PM-540, P540, P-540, PM940, PM-940, 5935-00-026-9338, 00-026-9338, 5935000269338, 000269338

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59OCT 26, 197200-026-933828914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )
REFERENCE DRAWINGS & PICTURES

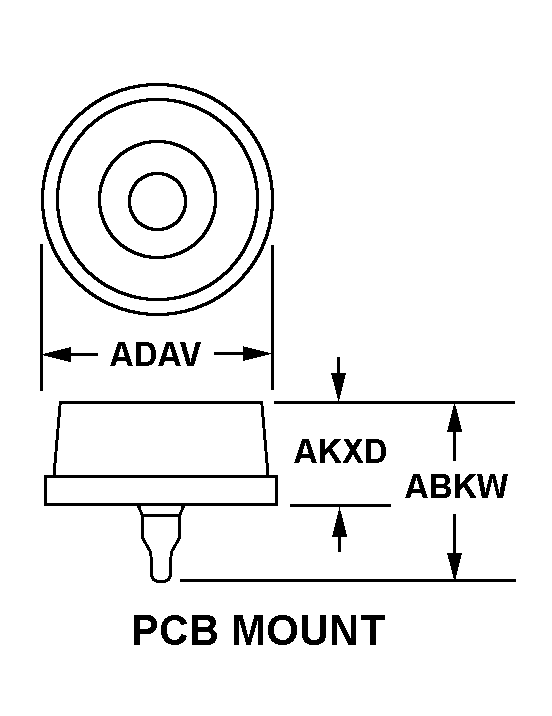

PCB MOUNT

SOCKET,PLUG-IN ELEC | 5935-00-026-9338, 000269338

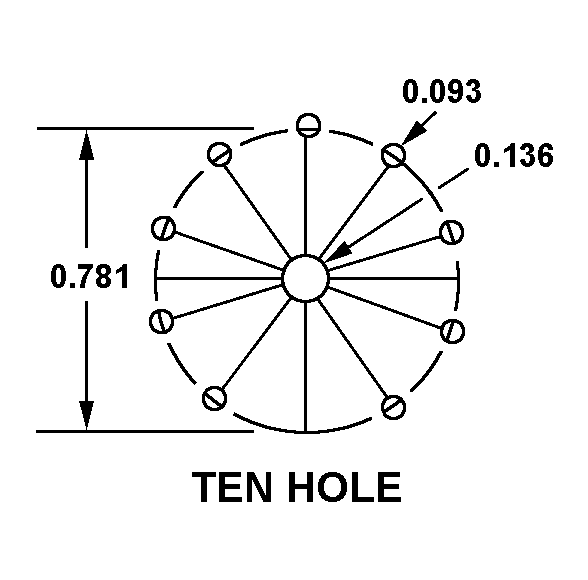

TEN HOLE

SOCKET,PLUG-IN ELEC | 5935-00-026-9338, 000269338
Cross Reference | NSN 5935-00-026-9338
Part Number Cage Code Manufacturer
9PCB471785CINCH CONNECTORS, INC.
121-52-00-10671785CINCH CONNECTORS, INC.
MPN1600-197913IEH CORPORATION
PM-54026742METHODE ELECTRONICS INC
P-54095354METHODE ELECTRONICS INC.DBA NETWORK BUSS PRODUCTS
PM-94095354METHODE ELECTRONICS INC.DBA NETWORK BUSS PRODUCTS
Technical Data | NSN 5935-00-026-9338
Characteristic Specifications
ACCOMMODATED CONTACT QUANTITY9
CONTACT MATERIAL BRASS
CONTACT SURFACE TREATMENT COPPER AND ENAMEL
BODY STYLE PCB MOUNT
OVERALL HEIGHT0.450 INCHES MINIMUM AND 0.490 INCHES MAXIMUM
OVERALL DIAMETER0.969 INCHES NOMINAL
PROJECTION LENGTH ABOVE MOUNTING SURFACE0.242 INCHES NOMINAL
BODY MATERIAL PLASTIC
TERMINAL TYPE AND QUANTITY9 TAB, SOLDER LUG
MOUNTING TYPE FOR WHICH DESIGNED PRINTED CIRCUIT
MOUNTING METHOD TERMINAL
PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE TEN HOLE
POLARIZATION TYPE SLOT
