NSN 5930-00-103-5178
Part Details | SLIDE SWITCH
5930-00-103-5178 A switch designed to be actuated by the sliding of a button, bar, or knob.
Alternate Parts: GF1240007, GF-124-0007, 6938, 31010982, 3101-0982, 31010982, 3101-0982, 5930-00-103-5178, 00-103-5178, 5930001035178, 001035178
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 10, 1968 | 00-103-5178 | 00400 ( SWITCH, SLIDE ) |
REFERENCE DRAWINGS & PICTURES

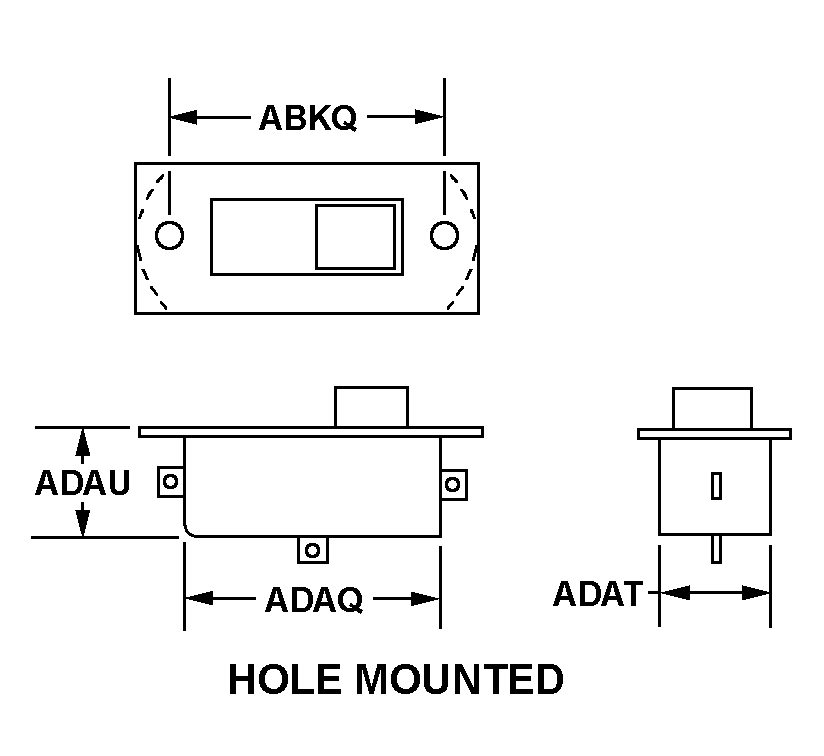

HOLE MOUNTED
Cross Reference | NSN 5930-00-103-5178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GF-124-0007 | 79727 | CONTINENTAL-WIRT ELECTRONICSCORPORATION |
| 6938 | 79727 | CONTINENTAL-WIRT ELECTRONICSCORPORATION |
| 3101-0982 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 3101-0982 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
Technical Data | NSN 5930-00-103-5178
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.125 INCHES NOMINAL |
| BODY LENGTH | 1.375 INCHES NOMINAL |
| BODY WIDTH | 0.563 INCHES NOMINAL |
| BODY HEIGHT | 0.375 INCHES NOMINAL |
| ACTUATOR LENGTH | 0.200 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | LEFT POSITION MAINTAINED AND RIGHT POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| MOUNTING METHOD | UNTHREADED HOLE |
| SPECIAL FEATURES | WEAPONS SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| CASE MATERIAL | METAL |
| END ITEM IDENTIFICATION | HELICOPTERS USCG SEARCH AND RESCUE HH-60J,SEARCH AND RESCUE HH-60H,CARRIER BASED ASW SH-60F,TICONDEROGA CLASS CG(40),LOS ANGELES CLASS SSN(688),STURGEON CLASS SSN(637),FORRESTAL CLASS CV,SPRUANCE CLASS DD(963),VIRGINIA CLASS CGN(41) |
