NSN 5930-00-085-4067
Part Details | FOOT SWITCH
5930-00-085-4067 A switch with a pedal which is actuated by the foot. For items not provided with a pedal, see switch (as modified). Excludes SWITCH, BEAM SELECTING, HEADLIGHT.
Alternate Parts: VH1251, VH-1251, A100S8, A-100S8, 5930-00-085-4067, 00-085-4067, 5930000854067, 000854067
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-085-4067 | 00174 ( SWITCH, FOOT ) |
REFERENCE DRAWINGS & PICTURES

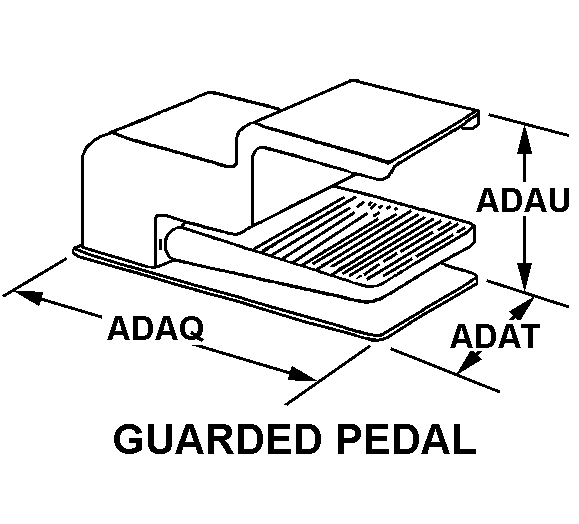

GUARDED PEDAL
Cross Reference | NSN 5930-00-085-4067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VH-1251 | 08730 | VEMALINE PRODUCTS INC.DBA HANDLES UNLIMITED |
| A-100S8 | 98473 | VIRGINIA ELECTRONICS CO INC |
Technical Data | NSN 5930-00-085-4067
| Characteristic | Specifications |
|---|---|
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C15.000 AMPERES RESISTIVE |
| BODY STYLE | GUARDED PEDAL |
| BODY LENGTH | 6.875 INCHES NOMINAL |
| BODY WIDTH | 4.500 INCHES NOMINAL |
| BODY HEIGHT | 5.000 INCHES NOMINAL |
