NSN 5360-00-024-6587
Part Details | EXTENSION GARTER SPRING
5360-00-024-6587 A close-coiled helical extension spring, with ends fastened together to form a circle, designed to impose compression stresses toward the center of the circle thus formed when uniformly expanded.
Alternate Parts: 5581167, 5581167, 5581167, 5360-00-024-6587, 00-024-6587, 5360000246587, 000246587
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-024-6587 | 04225 ( SPRING, GARTER, EXTENSION ) |

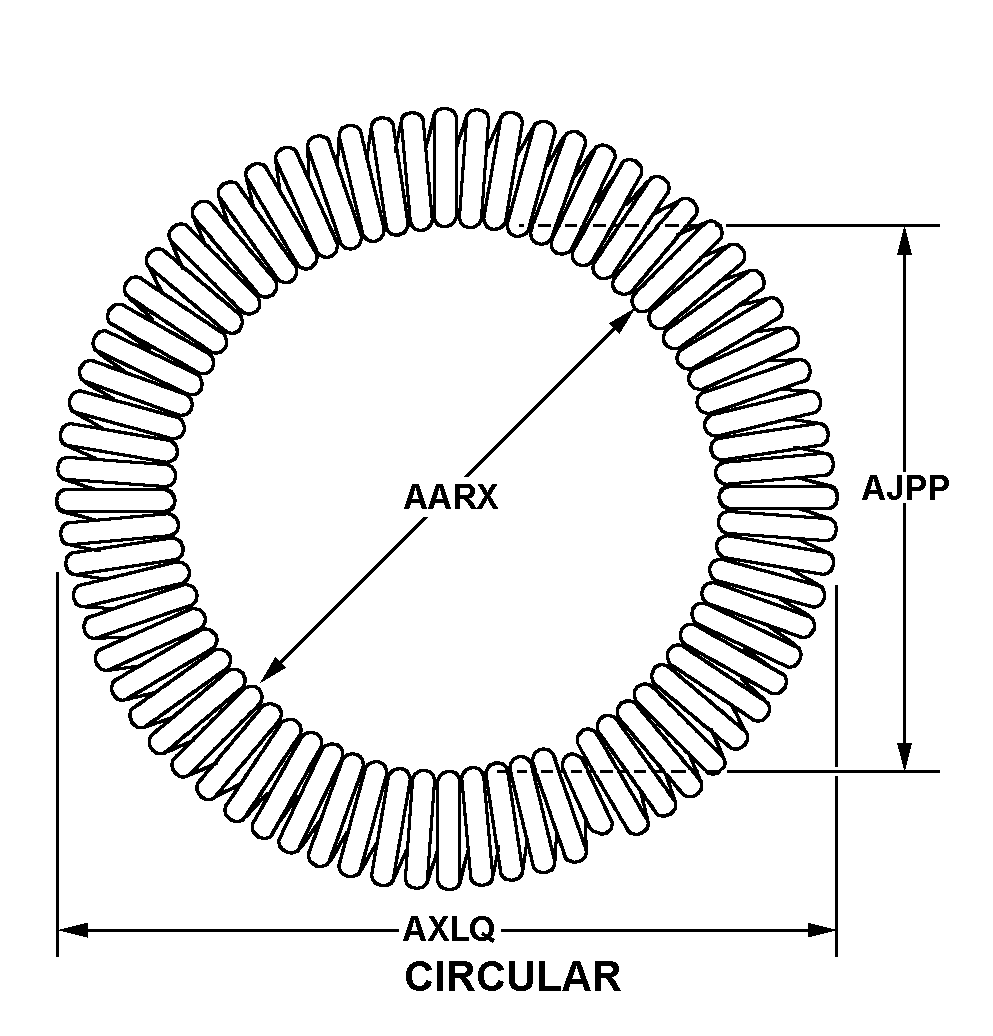

REFERENCE DRAWINGS & PICTURES
CIRCULAR
Cross Reference | NSN 5360-00-024-6587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5581167 | 24617 | GENERAL MOTORS CORP |
| 5581167 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 5581167 | 70040 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 5360-00-024-6587
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CIRCULAR |
| STOCK DIAMETER | 0.009 INCHES NOMINAL |
