NSN 5345-00-491-6252

Part Details | RUBBING BRICK

5345-00-491-6252 A piece of abrasive designed to remove form marks and mold marks and to dress all kinds of concrete work.

Alternate Parts: 02103H7, TL303, 5345-00-491-6252, 00-491-6252, 5345004916252, 004916252

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53OCT 15, 197200-491-625205807 ( BRICK, RUBBING )

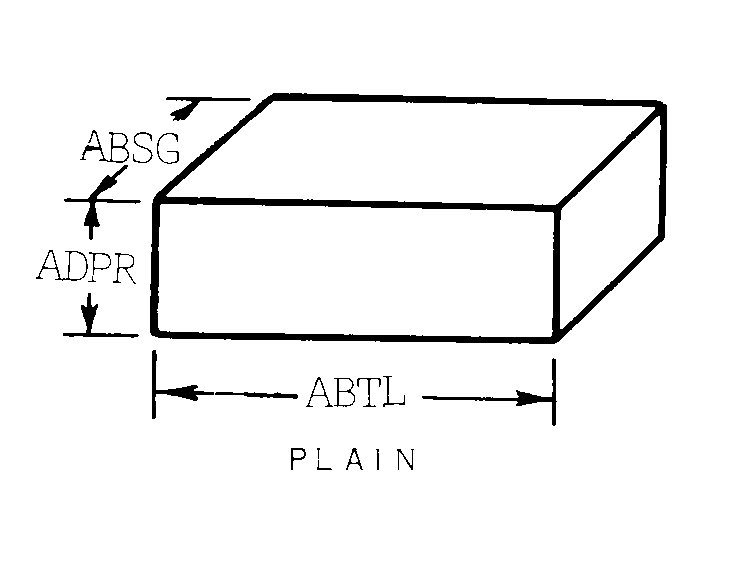

REFERENCE DRAWINGS & PICTURES

PLAIN

BRICK,RUBBING | 5345-00-491-6252, 004916252
Cross Reference | NSN 5345-00-491-6252
Part Number Cage Code Manufacturer
02103H789942GOLDBLATT TOOL COSUB OF AXIA INC
TL3030N7U8KRAFT TOOL CO
Technical Data | NSN 5345-00-491-6252
Characteristic Specifications
ABRASIVE MATERIAL SILICON CARBIDE
SCREEN GRIT SIZE DESIGNATOR30
WIDTH2.000 INCHES NOMINAL
LENGTH6.000 INCHES NOMINAL
BODY THICKNESS1.000 INCHES NOMINAL
BRICK STYLE PLAIN
