NSN 5342-00-343-4275
Part Details | GROOVED CLAMP COUPLING
5342-00-343-4275 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Alternate Parts: 68B520070101, 68B520070-101, ST7M4101, ST7M410-1, STM7M4101, STM7M410-1, MVT698921, MVT69892-1, MVT698921, MVT69892-1, 69795, VC 12042, VC 1204-2, VC 12041, VC 1204-1, 5342-00-343-4275, 00-343-4275, 5342003434275, 003434275
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 15, 1974 | 00-343-4275 | 20319 ( COUPLING, CLAMP, GROOVED ) |
REFERENCE DRAWINGS & PICTURES
GROOVED RETAINER

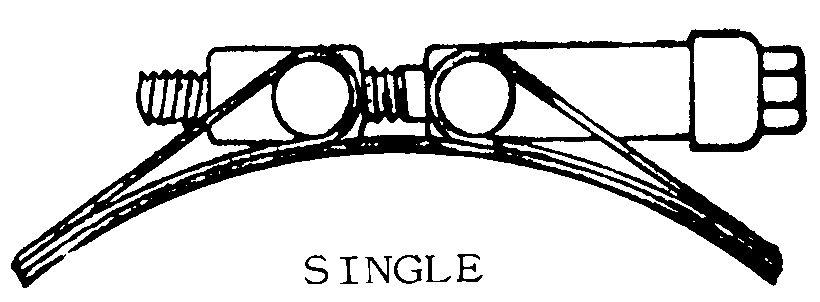

SINGLE
Cross Reference | NSN 5342-00-343-4275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68B520070-101 | 76301 | BOEING COMPANY, THEDBA BOEING |
| ST7M410-1 | 76301 | BOEING COMPANY, THEDBA BOEING |
| STM7M410-1 | 76301 | BOEING COMPANY, THEDBA BOEING |
| MVT69892-1 | 8W928 | EATON CORPORATIONDBA EATON QUIP |
| MVT69892-1 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| 69795 | 93835 | PARKER-HANNIFIN CORPORATIONDBA HYDRAULIC SYSTEMS DIVISION |
| VC 1204-2 | 14242 | VOSS INDUSTRIES, LLC |
| VC 1204-1 | 14242 | VOSS INDUSTRIES, LLC |
Technical Data | NSN 5342-00-343-4275
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED RETAINER |
| RETAINER THICKNESS | 0.063 INCHES NOMINAL |
| RETAINER WIDTH | 0.750 INCHES MAXIMUM |
| ROOT WIDTH | 0.354 INCHES MINIMUM AND 0.364 INCHES MAXIMUM |
| BAND THICKNESS | 0.050 INCHES NOMINAL |
| BAND WIDTH | 0.750 INCHES MAXIMUM |
| HEIGHT | 0.190 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 38.0 |
| SHAPE | ROUND |
| INSIDE DIAMETER | 6.440 INCHES NOMINAL |
| LATCH STYLE | SINGLE |
| NUT TYPE | SELF-LOCKING HEXAGON |
| SEGMENT QUANTITY | 4 |
| SEALING INNER LINER | NOT INCLUDED |
