NSN 5342-00-316-9240
Part Details | GROOVED CLAMP COUPLING
5342-00-316-9240 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Alternate Parts: ST7M276150, ST7M276-150, 2320150, 2320-150, D2320150, D2320-150, VR1026150, VR1026-150, 52242AE150, C7883150S, C7883-150S, C7883150, C7883-150, VR1026150, VR1026-150, 5342-00-316-9240, 00-316-9240, 5342003169240, 003169240
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 11, 1973 | 00-316-9240 | 20319 ( COUPLING, CLAMP, GROOVED ) |
REFERENCE DRAWINGS & PICTURES

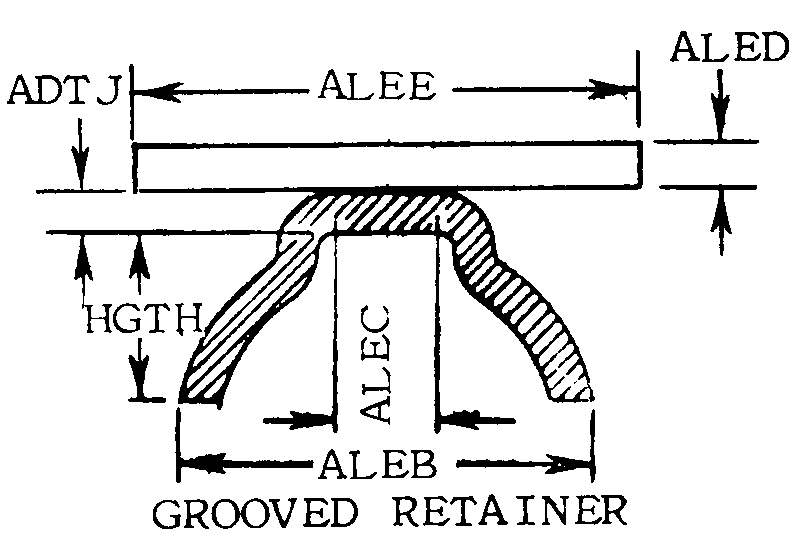

GROOVED RETAINER
DOUBLE
Cross Reference | NSN 5342-00-316-9240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST7M276-150 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 2320-150 | 15284 | EATON CORPORATIONDBA FLUID CONVEYANCE |
| D2320-150 | 15284 | EATON CORPORATIONDBA FLUID CONVEYANCE |
| VR1026-150 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 52242AE150 | 94581 | V I J CORPORATIONDBA NUCO |
| C7883-150S | 14242 | VOSS INDUSTRIES, LLC |
| C7883-150 | 14242 | VOSS INDUSTRIES, LLC |
| VR1026-150 | 14242 | VOSS INDUSTRIES, LLC |
Technical Data | NSN 5342-00-316-9240
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED RETAINER |
| RETAINER THICKNESS | 0.105 INCHES NOMINAL |
| RETAINER WIDTH | 0.535 INCHES NOMINAL |
| ROOT WIDTH | 0.329 INCHES MINIMUM AND 0.337 INCHES MAXIMUM |
| HEIGHT | 0.275 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 38.0 |
| SHAPE | ROUND |
| INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| LATCH STYLE | DOUBLE |
| NUT TYPE | PLAIN ROUND |
| DRILLED LOCKWIRE HOLE | NOT INCLUDED |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | INCLUDED |
