NSN 5342-00-290-8243
Part Details | CORROSION PREVENTIVE ANODE
5342-00-290-8243 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.
Alternate Parts: MILA18001KCLASS1TYPEZSS12, MIL-A-18001KCLASS1TYPEZSS-12, MILA18001, MIL-A-18001, MILA18001CLASS1TYPEZSS, MILA18001LCLASS1TYPEZSS12, MIL-A-18001LCLASS1TYPEZSS-12, 613894924, 6138949-24, 6087120913 ITEM 66, 608-7120913 ITEM 66, 1005487716 ITE, 100-5487716 ITE, 23030512PC36, 2303-05-12PC36, 4533631003004, 4533631-003-004, 5342-00-290-8243, 00-290-8243, 5342002908243, 002908243
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-290-8243 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
REFERENCE DRAWINGS & PICTURES

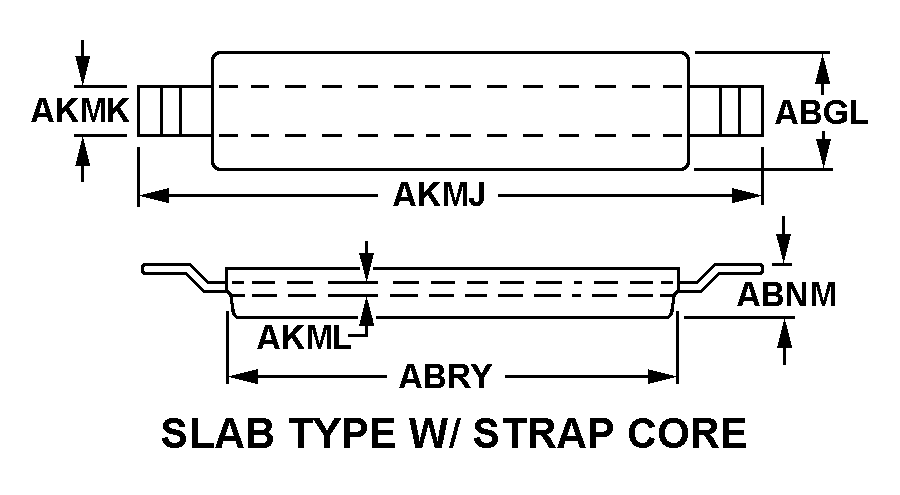

SLAB TYPE WITH STRAP CORE
Cross Reference | NSN 5342-00-290-8243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-A-18001KCLASS1TYPEZSS-12 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-A-18001 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILA18001CLASS1TYPEZSS | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-A-18001LCLASS1TYPEZSS-12 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 6138949-24 | 80091 | NAVAL FACILITIES ENGINEERING COMMAND |
| 608-7120913 ITEM 66 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 100-5487716 ITE | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2303-05-12PC36 | 25169 | PROJECT MANAGER AMPHIBIOUS LIGHTERSST LOUIS MO |
| 4533631-003-004 | 81898 | SUPERVISOR OF SHIPBUILDINGCONVERSION AND REPAIR USN |
Technical Data | NSN 5342-00-290-8243
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ZINC, MIL-A-18001, CLASS 1, TYPE ZSS ANODE AND STEEL, ASTM A36 CORE |
| CORE SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | SLAB TYPE WITH STRAP CORE |
| WIDTH | 3.000 INCHES NOMINAL |
| THICKNESS | 1.250 INCHES NOMINAL |
| LENGTH | 12.000 INCHES NOMINAL |
| CORE LENGTH | 16.000 INCHES NOMINAL |
| CORE WIDTH | 1.250 INCHES NOMINAL |
| CORE THICKNESS | 0.188 INCHES NOMINAL |
| MOUNTING METHOD | STRAPS |
| INSERT QUANTITY | 2 |
| CONSTRUCTION | SOLID |
| WEIGHT | 11.0 POUNDS |
| SPECIAL FEATURES | MOUNTING HOLES IN STRAPS ARE OPTIONAL AND SHOULD BE SUPPLIED ONLY WHEN SPECIFIED. |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND ZSS TYPE |
