NSN 5342-00-267-9600
Part Details | GROOVED CLAMP COUPLING
5342-00-267-9600 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Alternate Parts: 34J20450, 34J20-450, 4A90000113A, 4A90000-113A, VC1822A515A, VC1822A-515-A, 5342-00-267-9600, 00-267-9600, 5342002679600, 002679600
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 05, 1968 | 00-267-9600 | 20319 ( COUPLING, CLAMP, GROOVED ) |
REFERENCE DRAWINGS & PICTURES

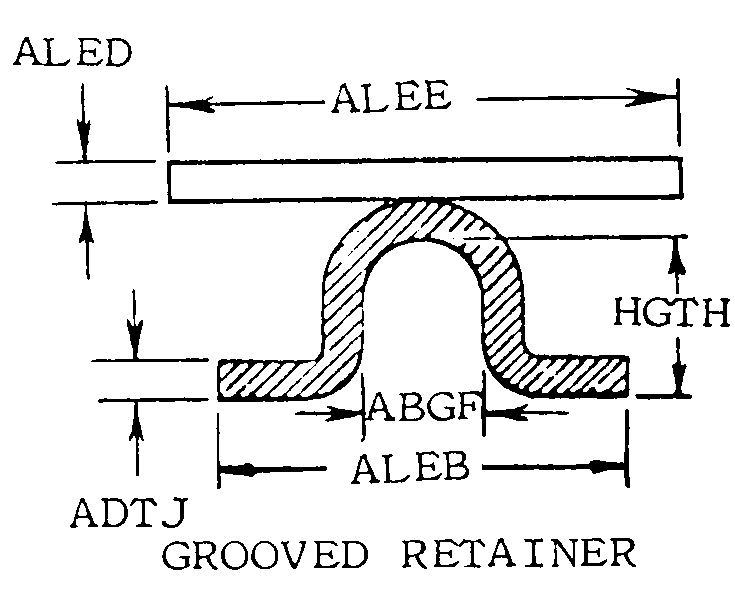

GROOVED RETAINER
SINGLE
Cross Reference | NSN 5342-00-267-9600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 34J20-450 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| 4A90000-113A | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| VC1822A-515-A | 14242 | VOSS INDUSTRIES, LLC |
Technical Data | NSN 5342-00-267-9600
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED RETAINER |
| TEMP RATING | 600.0 DEG FAHRENHEIT |
| GROOVE WIDTH | 0.478 INCHES NOMINAL |
| RETAINER THICKNESS | 0.037 INCHES NOMINAL |
| RETAINER WIDTH | 0.910 INCHES NOMINAL |
| BAND THICKNESS | 0.032 INCHES NOMINAL |
| BAND WIDTH | 0.750 INCHES NOMINAL |
| HEIGHT | 0.219 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SHAPE | ROUND |
| INSIDE DIAMETER | 4.500 INCHES NOMINAL |
| LATCH STYLE | SINGLE |
| NUT TYPE | PLAIN HEXAGON |
| DRILLED LOCKWIRE HOLE | NOT INCLUDED |
| SEGMENT QUANTITY | 3 |
| SEALING INNER LINER | NOT INCLUDED |
