NSN 5342-00-231-1647
Part Details | GROOVED CLAMP COUPLING
5342-00-231-1647 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Alternate Parts: MV89019B3S468, 5342-00-231-1647, 00-231-1647, 5342002311647, 002311647
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 17, 1973 | 00-231-1647 | 20319 ( COUPLING, CLAMP, GROOVED ) |
REFERENCE DRAWINGS & PICTURES
GROOVED RETAINER

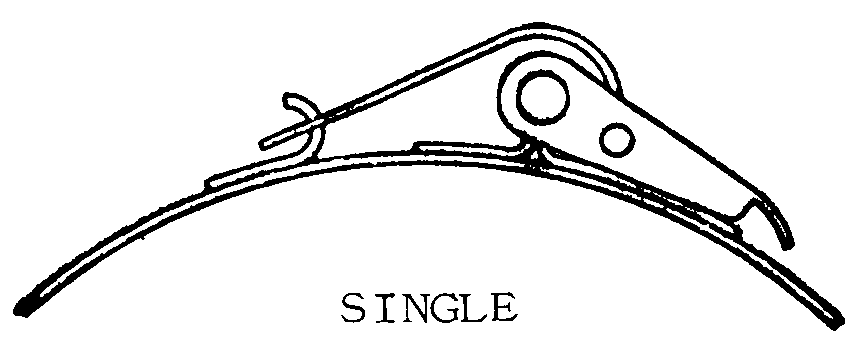

SINGLE
Cross Reference | NSN 5342-00-231-1647
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MV89019B3S468 | 26622 | AEROQUIP CORPTRANSPORTATION PRODUCTS DIV |
Technical Data | NSN 5342-00-231-1647
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED RETAINER |
| RETAINER THICKNESS | 0.060 INCHES NOMINAL |
| RETAINER WIDTH | 0.590 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| ROOT WIDTH | 0.810 INCHES NOMINAL |
| HEIGHT | 0.280 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 40.0 |
| MATERIAL AND LOCATION | STEEL, MIL-S-5059, TYPE 301, 1/4 HARD OVERALL |
| SHAPE | ROUND |
| INSIDE DIAMETER | 4.680 INCHES NOMINAL |
| LATCH STYLE | SINGLE |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | INCLUDED |
