NSN 5342-00-193-5293
Part Details | GROOVED CLAMP COUPLING
5342-00-193-5293 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Alternate Parts: 2412400, 2412-400, GC550FF4, 5342-00-193-5293, 00-193-5293, 5342001935293, 001935293
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | MAR 11, 1973 | 00-193-5293 | 20319 ( COUPLING, CLAMP, GROOVED ) |
REFERENCE DRAWINGS & PICTURES

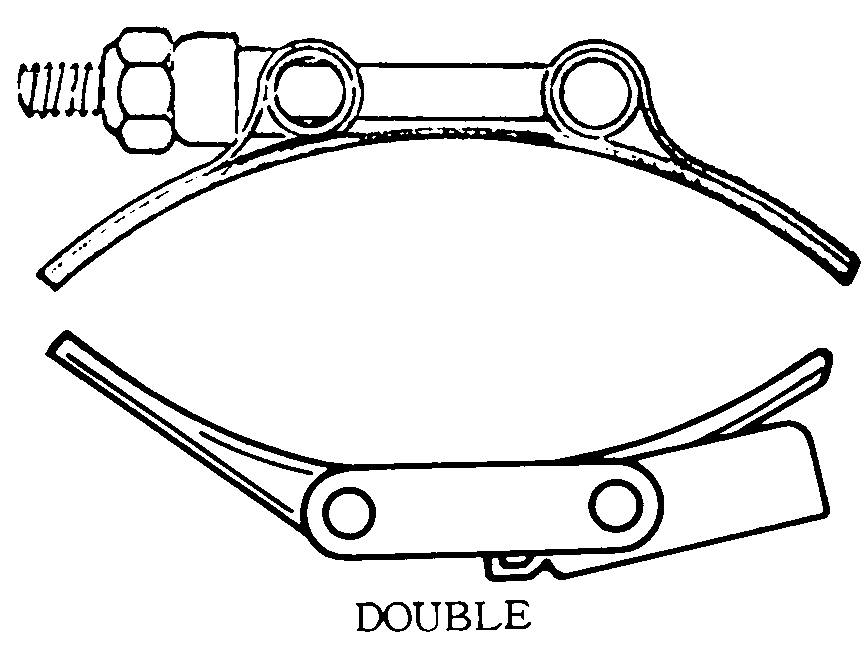

DOUBLE

Cross Reference | NSN 5342-00-193-5293
Part Number | Cage Code | Manufacturer |
---|---|---|
2412-400 | 15284 | EATON CORPORATIONDBA FLUID CONVEYANCE |
GC550FF4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5342-00-193-5293
Characteristic | Specifications |
---|---|
SHAPE | ROUND |
INSIDE DIAMETER | 4.916 INCHES NOMINAL |
LATCH STYLE | DOUBLE |
SEGMENT QUANTITY | 2 |
SEALING INNER LINER | NOT INCLUDED |
SPECIFICATION/STANDARD DATA | 26512-GC550 MANUFACTURERS SPECIFICATION |
