NSN 5342-00-020-5769
Part Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-020-5769 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Alternate Parts: J621024, J6210-24, B800504001FN10, B8005-04-001FN10, 0401010, 5342-00-020-5769, 00-020-5769, 5342000205769, 000205769
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-020-5769 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |
REFERENCE DRAWINGS & PICTURES

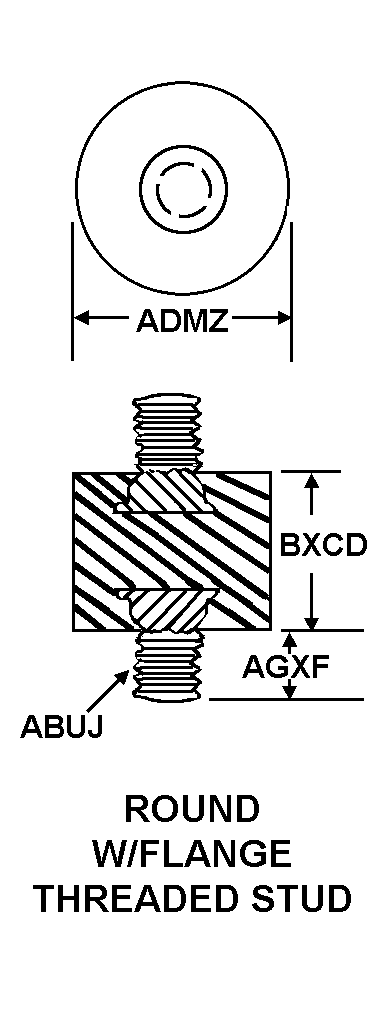

ROUND W/FLANGE THREADED STUD
Cross Reference | NSN 5342-00-020-5769
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J6210-24 | 76005 | LORD CORPORATIONDBA AEROSPACE DIVISION |
| B8005-04-001FN10 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| 0401010 | 00447 | WABCO CONSTRUCTION AND MININGEQUIPMENT GROUP INDIANAPOLIS PLANT |
Technical Data | NSN 5342-00-020-5769
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND W/FLANGE THREADED STUD |
| INSIDE DIAMETER | 0.640 INCHES NOMINAL |
| FLANGE THICKNESS | 0.810 INCHES NOMINAL |
| MAJOR OUTSIDE DIAMETER | 2.980 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO END | 0.810 INCHES NOMINAL |
| HEIGHT | 2.220 INCHES NOMINAL |
| SPECIAL FEATURES | LINER MATERIAL: STEEL |
