NSN 5325-00-253-5339
Part Details | SNAP FASTENER CAP
5325-00-253-5339 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.
Alternate Parts: AN22711, AN227-11, MS279811N, MS27981-1N, 5325-00-253-5339, 00-253-5339, 5325002535339, 002535339
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 25, 1969 | 00-253-5339 | 16556 ( CAP, SNAP FASTENER ) |

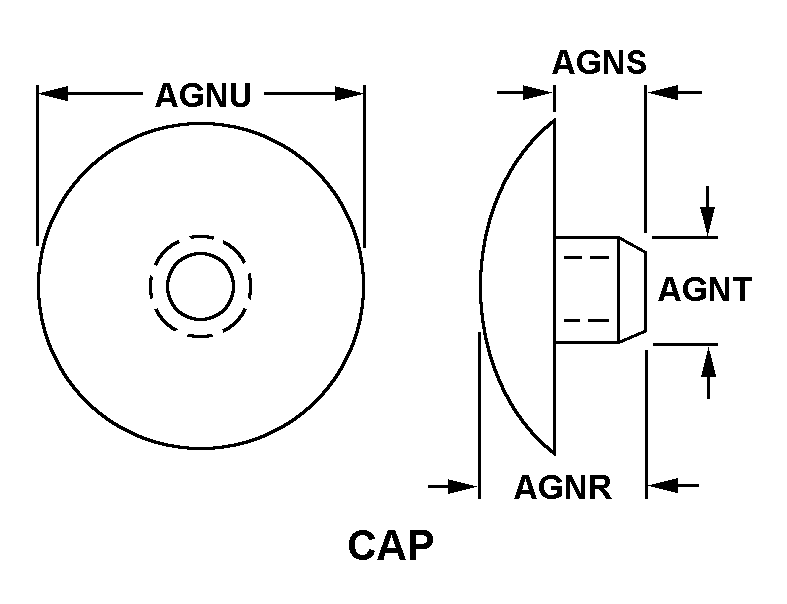

REFERENCE DRAWINGS & PICTURES
CAP
Cross Reference | NSN 5325-00-253-5339
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-11 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27981-1N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5325-00-253-5339
| Characteristic | Specifications |
|---|---|
| CAP STYLE | CAP |
| CAP OVERALL LENGTH | 0.219 INCHES NOMINAL |
| CAP SHANK LENGTH | 0.125 INCHES NOMINAL |
| CAP SHANK DIAMETER | 0.109 INCHES NOMINAL |
| CAP HEAD DIAMETER | 0.531 INCHES NOMINAL |
