NSN 5325-00-242-5131
Part Details | RETAINING RING
5325-00-242-5131 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Alternate Parts: 5325002425131, 378266, 5325-00-242-5131, 00-242-5131, 5325002425131, 002425131
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 28, 1973 | 00-242-5131 | 07623 ( RING, RETAINING ) |

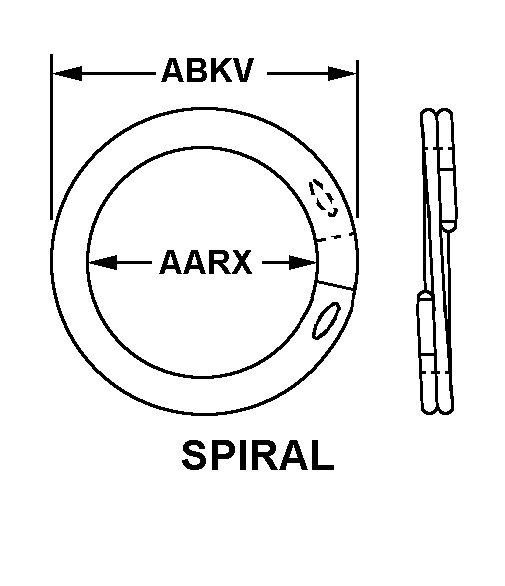

REFERENCE DRAWINGS & PICTURES
ROUND
SPIRAL
Cross Reference | NSN 5325-00-242-5131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5325002425131 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 378266 | 11757 | PARKER-HANNIFIN CORPORATIONDBA CHELSEA PRODUCTS DIVISION |
Technical Data | NSN 5325-00-242-5131
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | SPIRAL |
| CROSS-SECTIONAL SHAPE STYLE | 2 ROUND |
| USAGE DESIGN | INTERNAL |
| OUTSIDE DIAMETER | 5.566 INCHES MINIMUM AND 5.591 INCHES MAXIMUM |
| MAJOR THICKNESS | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
