NSN 5310-00-005-4375
Part Details | RECTANGULAR PLAIN NUT
5310-00-005-4375 A nut, flat on top and bottom, having four flat sides of which two parallel sides are shorter than the other two. For items having a thickness (or height) exceeding two times the width, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.)
Alternate Parts: 32252322003, 3225-2322-003, 5310-00-005-4375, 00-005-4375, 5310000054375, 000054375
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 07, 1972 | 00-005-4375 | 15890 ( NUT, PLAIN, RECTANGULAR ) |

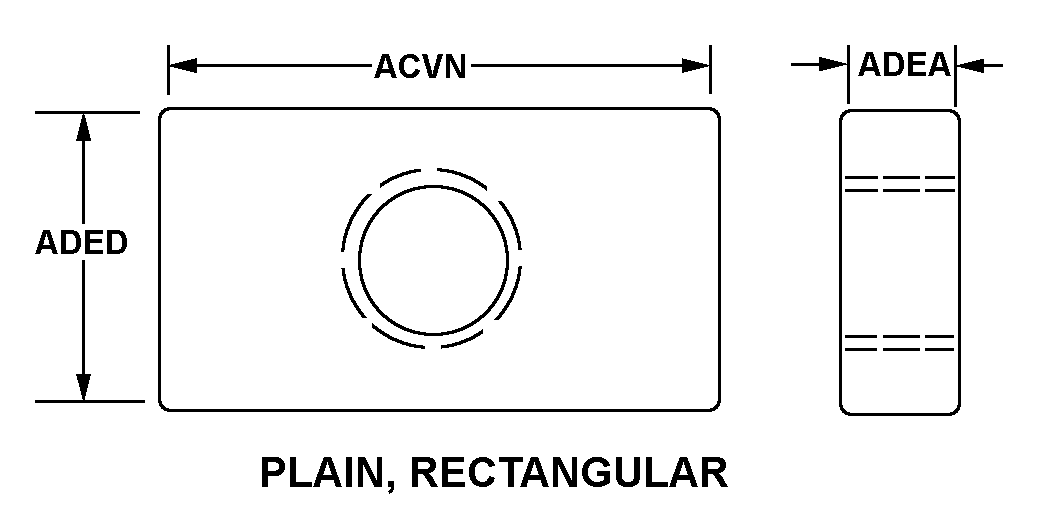

REFERENCE DRAWINGS & PICTURES
PLAIN, RECTANGULAR
Cross Reference | NSN 5310-00-005-4375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3225-2322-003 | K0656 | BAE SYSTEMS (OPERATIONS) LIMITEDDBA BAE SYSTEMS PLC |
Technical Data | NSN 5310-00-005-4375
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 44 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN, RECTANGULAR |
| NUT LENGTH | 0.344 INCHES NOMINAL |
| NUT HEIGHT | 0.125 INCHES NOMINAL |
| NUT WIDTH | 0.281 INCHES NOMINAL |
