Part Details | INTERNALLY RELIEVED BODY BOLT
5306-00-020-3134 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Alternate Parts: 458298, 5306-00-020-3134, 00-020-3134, 5306000203134, 000203134
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 29, 1967 | 00-020-3134 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |

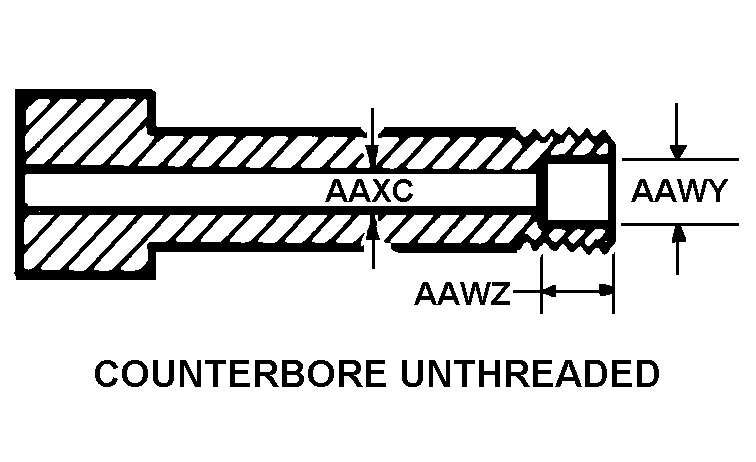

REFERENCE DRAWINGS & PICTURES
HEXAGON
COUNTERBORE UNTHREADED
Cross Reference | NSN 5306-00-020-3134
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 458298 | 19139 | EASTMAN KODAK COMPANYDBA KODAK |
Technical Data | NSN 5306-00-020-3134
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.812 INCHES MINIMUM |
| FASTENER LENGTH | 0.937 INCHES NOMINAL |
| STYLE DESIGNATOR | A COUNTERBORE UNTHREADED |
| CONCENTRIC HOLE DIAMETER | 0.196 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.323 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.562 INCHES NOMINAL |
