NSN 5305-00-059-2661
Part Details | MACHINE SCREW
5305-00-059-2661 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Alternate Parts: R1050P3L, R1050PL3, R1050P3L, R1050P3L, 5305-00-059-2661, 00-059-2661, 5305000592661, 000592661
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-059-2661 | 06657 ( SCREW, MACHINE ) |
REFERENCE DRAWINGS & PICTURES
DOUBLE HEXAGON W/ HOLE

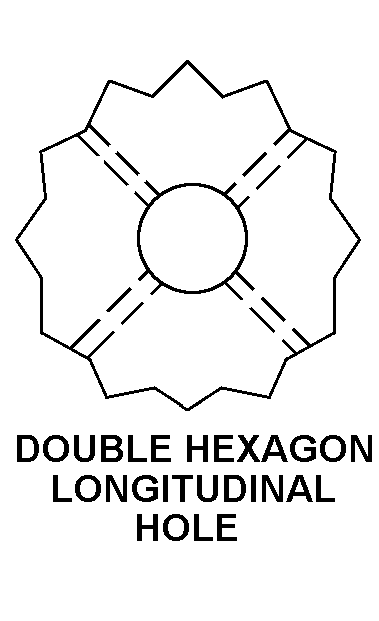

DOUBLE HEXAGON LONGITUDINAL HOLE
Cross Reference | NSN 5305-00-059-2661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R1050P3L | 24446 | GENERAL ELECTRIC COMPANY |
| R1050PL3 | 99207 | GENERAL ELECTRIC COMPANYDBA GE |
| R1050P3L | 03350 | GENERAL ELECTRIC COMPANYDBA GE STRUCTURED SERVICES DIV |
| R1050P3L | 50945 | MERCURY AEROSPACE FASTENERS INC |
Technical Data | NSN 5305-00-059-2661
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.312 INCHES MINIMUM |
| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| SCREW MATERIAL | IRON ALLOY 660 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | DOUBLE HEXAGON W/ HOLE |
| HEAD HEIGHT | 0.230 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.185 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.270 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.035 INCHES NOMINAL |
| HEAD HOLE CONFIGURATION STYLE | DOUBLE HEXAGON LONGITUDINAL HOLE |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.031 INCHES NOMINAL |
