NSN 5305-00-021-2555
Part Details | ASSEMBLED WASHER SCREW
5305-00-021-2555 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Alternate Parts: 1961565, 1961565, 5305-00-021-2555, 00-021-2555, 5305000212555, 000212555
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 17, 1968 | 00-021-2555 | 06660 ( SCREW, ASSEMBLED WASHER ) |
REFERENCE DRAWINGS & PICTURES
DISHED HEXAGON
CROSS RECESS TYPE 1

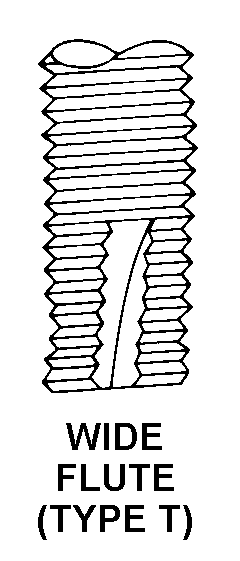

WIDE FLUTE (TYPE T)

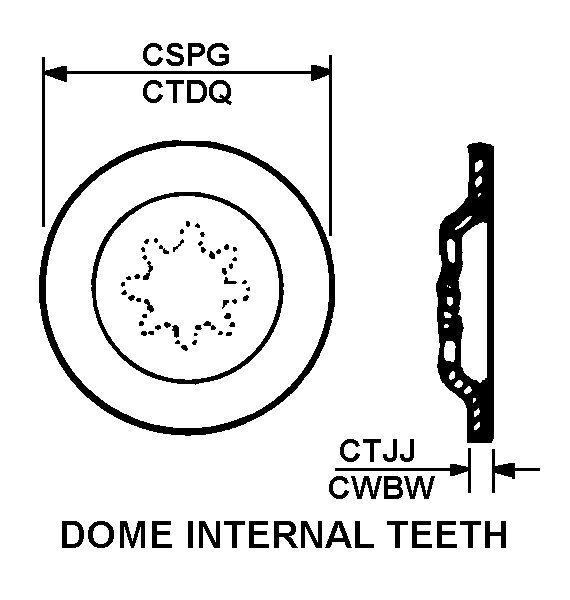

DOME INTERNAL TEETH
DOME INTERNAL TEETH
Cross Reference | NSN 5305-00-021-2555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1961565 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 1961565 | 1LW55 | REMY, INC. |
Technical Data | NSN 5305-00-021-2555
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| NONMACHINE THREAD STYLE | WIDE FLUTE (TYPE T) |
| THREAD LENGTH | 0.570 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| FASTENER LENGTH | 0.660 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| HEAD STYLE | 3 DISHED HEXAGON |
| HEAD DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| HEAD HEIGHT | 0.085 INCHES MINIMUM AND 0.096 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | 4 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | DOME INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.372 INCHES MINIMUM AND 0.383 INCHES MAXIMUM |
| PRIMARY WASHER MATERIAL THICKNESS | 0.020 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
| SPECIAL FEATURES | TRIANGULAR SHAPED POINT IN LIEU OF FLUTES |
