NSN 5136-00-184-6109

Part Details | THREAD CUTTING TAP

5136-00-184-6109 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.

Alternate Parts: 5305H1, 5136-00-184-6109, 00-184-6109, 5136001846109, 001846109

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
51MAR 02, 197300-184-610915218 ( TAP, THREAD CUTTING )
REFERENCE DRAWINGS & PICTURES

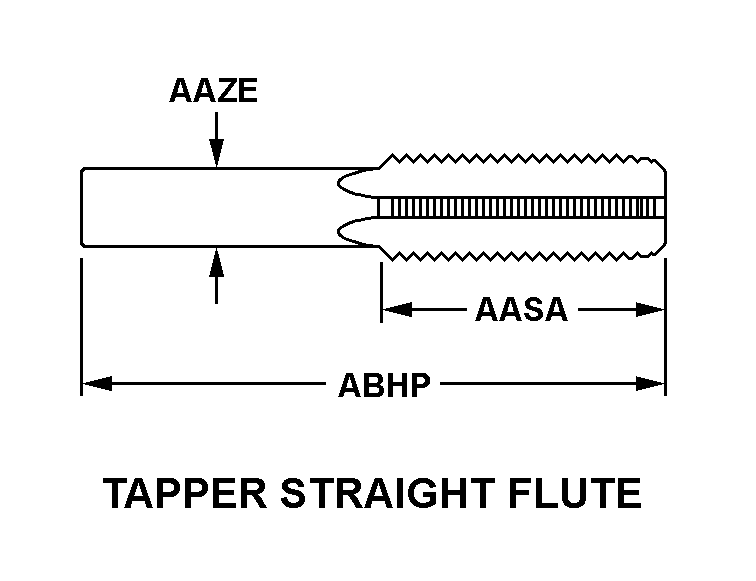

TAPPER STRAIGHT FLUTE

TAP,THREAD CUTTING | 5136-00-184-6109, 001846109
Cross Reference | NSN 5136-00-184-6109
Part Number Cage Code Manufacturer
5305H126232JCORPSDBA LASHUNDRA CRAIG
Technical Data | NSN 5136-00-184-6109
Characteristic Specifications
STYLE DESIGNATOR TAPPER STRAIGHT FLUTE
THREAD LENGTH0.312 INCHES NOMINAL
SHANK DIAMETER0.141 INCHES NOMINAL
OVERALL LENGTH1.625 INCHES NOMINAL
MATERIAL AND LOCATION STEEL, HIGH SPEED OVERALL
THREAD SIZE AND SERIES/TYPE DESIGNATOR0.060-80 UNF
THREAD PITCH DIAMETERS+0.0524 TO +0.0529 INCHES
THREAD DIRECTION RIGHT-HAND
THREAD STRUCTURE REGULAR
THREAD FORMING METHOD GROUND
STARTING CHAMFER TYPE TAPER
FLUTE QUANTITY2
