NSN 5120-00-104-1860
Part Details | SOCKET HEAD SCREW KEY
5120-00-104-1860 A hand tool designed to impart a rotary movement of force for installing or removing socket screw products. Excludes WRENCH, DRAIN PLUG; and WRENCH, BUNG.
Alternate Parts: 78006, 609 764, 609 7/64, GGGK275, GGG-K-275, GGGK275 TY6STA, GGG-K-275 TY6STA, 56046, 2301317, 5120-00-104-1860, 00-104-1860, 5120001041860, 001041860
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 24, 1972 | 00-104-1860 | 03519 ( KEY, SOCKET HEAD SCREW ) |
REFERENCE DRAWINGS & PICTURES

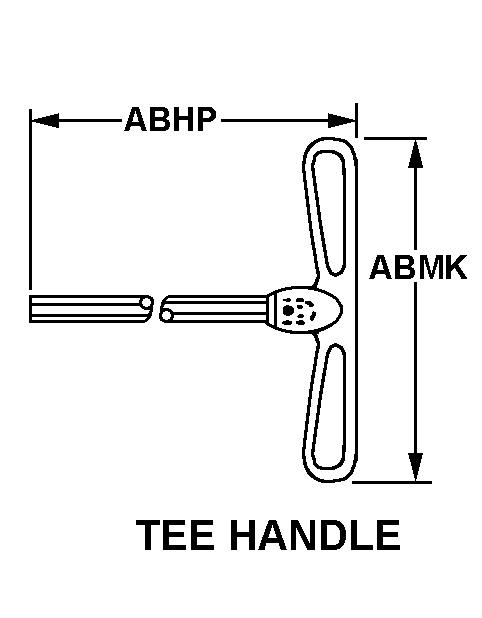

TEE HANDLE
Cross Reference | NSN 5120-00-104-1860
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78006 | 70276 | ALLEN MFG COSUB OF CHICAGO PNEUMATIC TOOL CO |
| 609 7/64 | 70276 | ALLEN MFG COSUB OF CHICAGO PNEUMATIC TOOL CO |
| GGG-K-275 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-K-275 TY6STA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 56046 | 74445 | H-K CONNECTICUT HOLDING COMPANY |
| 2301317 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5120-00-104-1860
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TEE HANDLE |
| OVERALL LENGTH | 3.250 INCHES MINIMUM AND 3.750 INCHES MAXIMUM |
| OVERALL WIDTH | 2.500 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
